MPO MTP Patch Cord

8/12/16/24 Fibers MPO MTP Trunk Cable with 3.0mm Diameter and 10/40/100Gbps Support for High Density Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

8/12/16/24 Fibers MPO MTP Trunk Cable with 3.0mm Diameter and 10/40/100Gbps Support for High Density Data Centers

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mpo

Mode Type:

MM/SM

Cable Color:

12 Colors

Cable Diameter:

3.0mm

Cable Length:

3m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

LANS MPO MTP Trunk Cable

Pre Terminated MPO MTP Trunk Cable

FTTX mpo trunk cable

Product Description

8 / 12 / 16 / 24 Fibers MPO MTP Trunk Cable Pre Terminated For LANS / WANS / FTTX

Low insertion loss Plenum MPO/MTP Trunk Cable PVC 3.0mm MPO cable

Overview of MPO/MTP Trunk Cable

MPO/MTP Fiber Patch cable/trunk cable is terminated with MPO/MTP connector on both ends. These cables connect MPO/MTP modules together as a permanent link, available with 12, 24, 48, 60, 72, 96, or 144 fibers. They support speeds up to 10/40/100Gbps data center solutions and are ideal for interconnecting cassettes, panels, or ruggedized MPO/MTP fan-outs. These cables facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments, offering flexibility when changing connector styles in patch panels.

Applications

High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
LANS / WANS/ FTTX

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, time-saving
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 8C, 12C, 24C

Products Info

Fiber count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return loss	≥ 50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Geometric Specification (only for 3D interferometer tested)

Type	Vertex offset(um)	Curvature radius(mm)	Fiber Height(nm)	Angle offset(°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

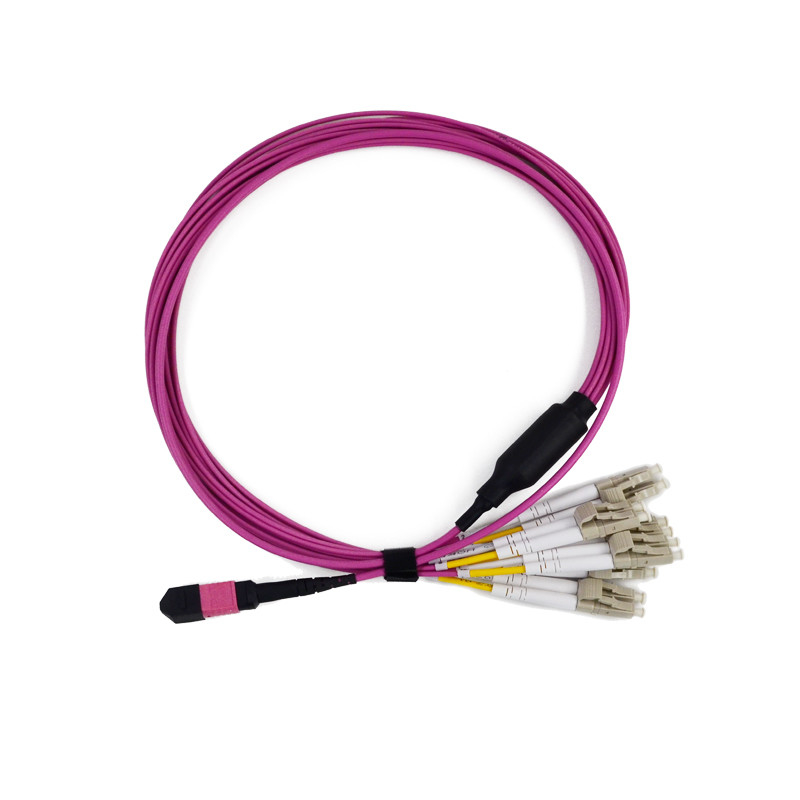

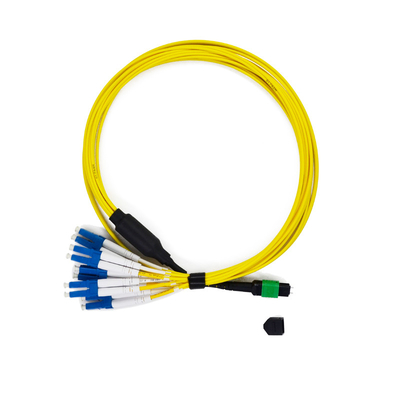

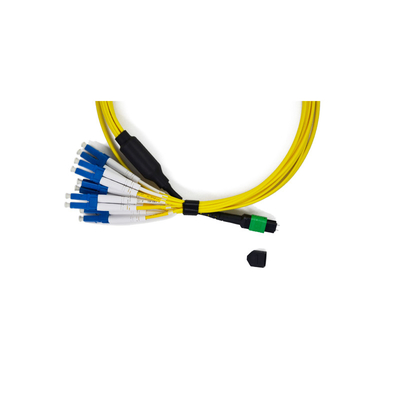

Sketch Map (LC Connector and 12 colors cable)

Packaging

We pack the product in OPP bags inside carton boxes to ensure protection during delivery.

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 pc, but we don't recommend ordering just 1 pc as the cost will be higher.

Q: What's the price?

A: Price depends on quantity. We'll offer our best price after knowing your quantity requirements.

Q: Can you quote FOB price?

A: Yes, but most deliveries are by air (DHL, TNT, UPS, FEDEX). For large quantities, we can provide sea freight options.

Q: How is your quality?

A: We produce according to IEC standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: For fiber optic patch cords, lead time is 2-3 working days for 5000 pcs. Regular products are in stock.

Q: What's your warranty?

A: Patch cords have 2 years warranty for non-artificial damage. Artificial damage can be repaired for free (customer pays freight).

Q: What's your packing?

A: We use international export packaging and can print your logo on the packing.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign Confidentiality Agreements.

Q: Can I have a sample?

A: Free samples available for some products (customer pays freight). For high-value products, sample charge applies but will be returned with order.

Q: How can I order?

A: Send us your requirements (product name, specifications, quantity). We'll provide pricing and lead time. After payment confirmation, we'll arrange production and delivery.

Q: What's your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
