Product Details:
|
| Connector Type: | Mtp | Mode Type: | MM/SM |
|---|---|---|---|
| Cable Color: | 8/12 | Cable Diameter: | 3.0mm 0.9mm |
| Cable Length: | 15m/5m/10m | Insertion Loss: | ≤0.35db |
| Return Loss: | APC≥65dB; PC≥55 | ||
| High Light: | Low Insertion Loss MPO MTP Cassette,3.0mm MPO to LC Cassette,PVC LSZH MPO MTP Cassette |
||

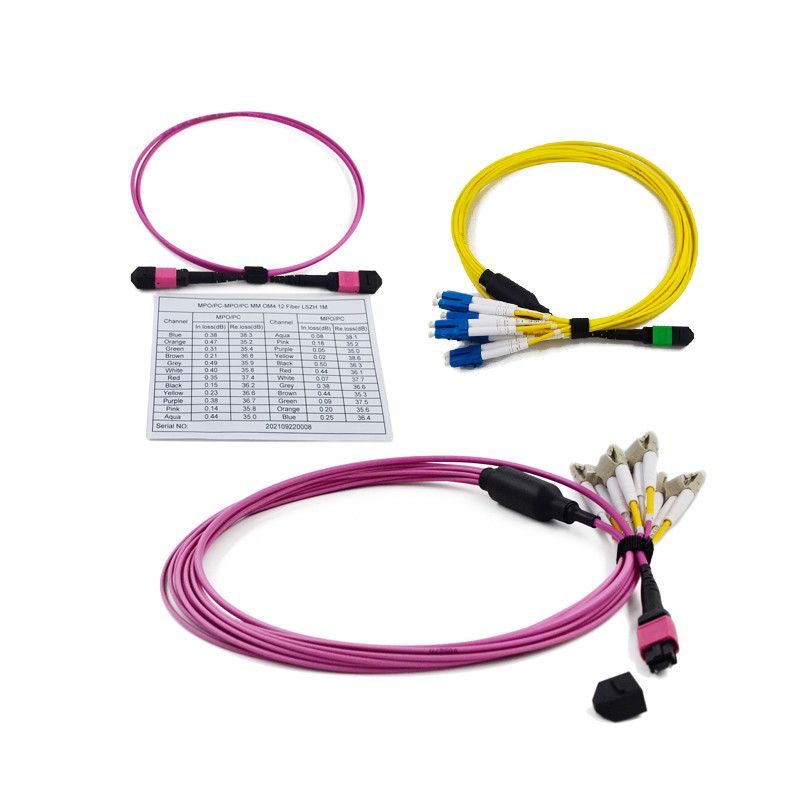

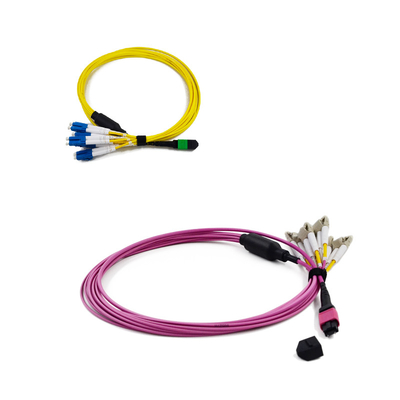

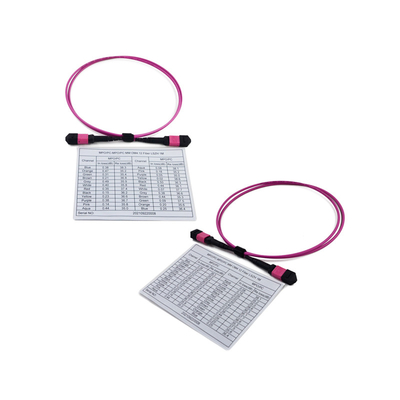

Low insertion loss 3.0mm MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette
Overview of
MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette
three Cables for Three Polarization Methods
The three methods for proper polarity defined by TIA 568 standard are named as Method A, Method B, and Method C. To match these standards, three types of MTP fibers with different structures named Type A, Type B, and Type C are being used for the three different connectivity methods respectively. The three different cables will be introduced firstly, and the three connectivity methods.
MTP Trunk Cable Type A: Type A cable, also known as straight cable, is a straight-through cable with a key-up MTP connector on one end and a key-down MTP connector on the opposite end. This makes the fibers at each end of the cable to have the same fiber position. For example, the fiber located at position 1 (P1) of the connector on one side will arrive at P1 at the other connector. The fiber sequence of a 12 fiber MTP Type A cable is shown below:
Keep MTP/MPO Polarity Rules When Building Connection
When fiber patch cords have different polarity schemes and gender, IT staff needs to be very careful when replacing patch cords in the field. Those who don’t understand polarity or are in a rush to get equipment up and running can potentially use the wrong patch cord and impact signal transmission.
Rules for MTP/MPO Cable and Patch Cable Connections
Where there are A-to-A type patch cables and A-to-B type patch cables, there are three general types of array (multi-fiber) cable assemblies. It is noted that the alignment pins on the MTP/MPO connectors are important for maintaining the correct polarity. Therefore, it is necessary to make sure of proper pin position before you connect MTP/MPO fiber with patch cable.
A-to-B type LC/SC duplex patch cable is the standard crossover cord that maps the Tx port to the Rx port. With the flip, A-to-B type patch cable maintains proper polarity. And MTP trunk cable Type B reverses the fiber positions at each end (1 to 12 and 12 to 1) and the connector keys are both oriented face up. This kind of cable connection is recommended to keep proper MTP/MPO polarity.
Rules for MTP/MPO Cable and Cassette Connection
The selection of the MTP/MPO cassette will also determine the choice of MTP/MPO cable. You’d better choose a cassette with proper alignment pins, so that MTP/MPO cassettes can near perfect mate with the MTP/MPO connectors at either end of MTP/MPO cables. In addition, the rear of the adapter mounted on the cassette defines it as either Method A or Method B to correspond with the TIA standard.
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | LC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 1.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Type | Vertex offset(um) | Curvature radius(mm) | Feber Height(nm) | Angle offset(°) |
| 2.5mm UPC | ≤50 | 10~25 | (-50, +50) | None |
| 2.5mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
| 1.25mm UPC | ≤50 | 7~25 | (-50, +50) | None |
| 1.25mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
Pakcing
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
