| Brand Name: | New Light |
| Model Number: | MPO MTP |
| MOQ: | 1 pcs |
| Price: | can be negotiated |
| Packaging Details: | OPP bag + Carton box |
| Payment Terms: | T/T, Western Union, MoneyGram , Paypal |
There are 6 pcs 12 core MPO conectory on each side of the patch cord .Total have 12 MPO connector in this patch cord .and the fiber count is 72 core total . this is a kinds of fan out patch cord .
The diameter of each fan out cable normal is 3.0mm .but also can be customized into 3.6 / 4.4/5.0mm , it is according to your requirements .
The fan out length can be 0.5meter or 1 meter or other length according to your requirements , before you order ,should let us know the length .
OM3 multi mode cable color normal is aqua . if you need customize it into other color , the MOQ of total quantity should be over 1000 meters , otherwise it is expensive and difficult to produced by machine .

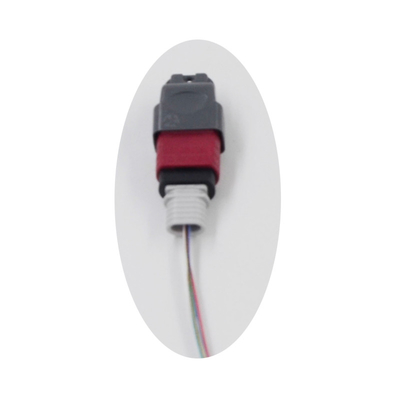

MPO connectors are well-suited for high-density, high-traffic applications including data centers and central offices.
We can offer 4, 8, 12, 16,24 and 32-fiber MPO assemblies, with ribbon, flat and round cable structure options. We can also provide MPO assemblies with IP (waterproof) connectivity.
Applications
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
Features and benefits
1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space
Technical Parameter
| products name | OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC Cable |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | ( can be customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| core type | 50/125um |
| connector type | male |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Method C
MORE connector for your reference
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
|
| Brand Name: | New Light |
| Model Number: | MPO MTP |
| MOQ: | 1 pcs |
| Price: | can be negotiated |
| Packaging Details: | OPP bag + Carton box |
| Payment Terms: | T/T, Western Union, MoneyGram , Paypal |
There are 6 pcs 12 core MPO conectory on each side of the patch cord .Total have 12 MPO connector in this patch cord .and the fiber count is 72 core total . this is a kinds of fan out patch cord .
The diameter of each fan out cable normal is 3.0mm .but also can be customized into 3.6 / 4.4/5.0mm , it is according to your requirements .
The fan out length can be 0.5meter or 1 meter or other length according to your requirements , before you order ,should let us know the length .
OM3 multi mode cable color normal is aqua . if you need customize it into other color , the MOQ of total quantity should be over 1000 meters , otherwise it is expensive and difficult to produced by machine .
MPO connectors are well-suited for high-density, high-traffic applications including data centers and central offices.
We can offer 4, 8, 12, 16,24 and 32-fiber MPO assemblies, with ribbon, flat and round cable structure options. We can also provide MPO assemblies with IP (waterproof) connectivity.
Applications
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
Features and benefits
1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space
Technical Parameter
| products name | OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC Cable |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | ( can be customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| core type | 50/125um |
| connector type | male |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Method C
MORE connector for your reference
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
