Product Details:
|
| Product Name: | 3.0mm Mpo 24 Fiber Cable | Connector Type: | MPO- 8*LC |
|---|---|---|---|
| Core Type: | 50/125um | Insertion Loss: | Insertion Loss ≤ 0.5dB |
| Fiber Type: | MM | Fiber Count: | 8 FIBER |
| Jacket: | PVC | Cable Diameter: | 3.0mm |
| High Light: | PVC MPO To LC cable,MM MPO To LC cable,3.0mm MPO MTP Cable |
||

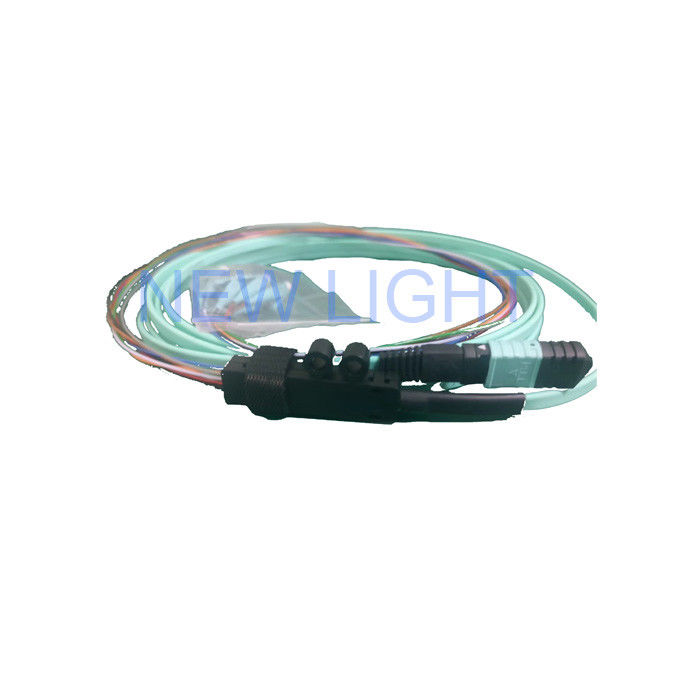

8F MPO To LC Cable MM 50/125um PVC 3.0mm mpo 24 fiber cable
High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Good Durability
Good Exchangeability
High temperature stability
Fiber Optic MPO MTP cable Application
Fiber Optic MPO MTP cable Parameter
| products name | 8F MPO To LC Breakout Cable MM 50/125um Aqua PVC 3.0mm MPO Patch Cable |
| mode type | MM |
| cable count | 8 core ( can be 4/8/12/16/24/32 core ) |
| core type | 50/125um |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | ( can be customized according to your request ) |
| out jacket material | PVC |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| connector type | male |
| connector color | Aqua (Aqua / Magenta /beige are ok ) |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
We have a very competitive price shipping forward. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first after you placed an order, the sample charge will be returned.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
Packing reference
