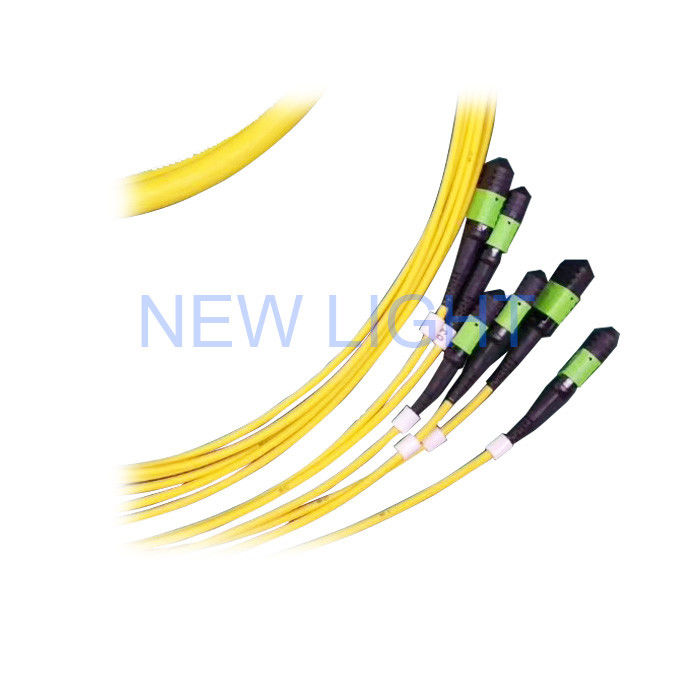

G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core

G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core
G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core
G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core

Large Image :  G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO / MTP - 12*LC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days ( according to your quantity )
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 500 pcs per day

G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core

Description
Connector Type: MPO / MTP Material: LSZH
Mode Type: Single Mode Core Type: 12core
Cable Color: Yellow Length: Can Be Customized
Delivery Time: 2-7 Working Days After Received Deposit Production Ability: 500 Pcs / Day
High Light:

G652D Duplex Fiber Optic Cable

,

LSZH Duplex Fiber Optic Cable

,

Single Mode MPO MTP Cable

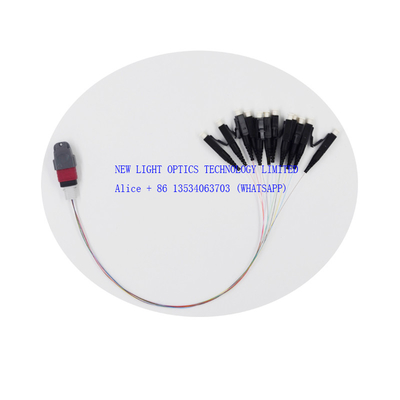

8 / 12 / 24 core G652D LSZH Fiber Optical MPO / MTP Patch cord / MPO trunk cable​



IEC61754-7 & GR-1435-CORE compliant.


MPO/MTP multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MPO/MTP fan out, spanning MDA, HDA and EDA zones.


Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.







Technical Parameter



Item Technical Parameters
Product 8 / 12 / 24 core G652D LSZH Fiber Optical MPO / MTP Patch cord / MPO trunk cable
Connector MPO (F or M) MPO (F or M)
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);

MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);

Return Loss SM:≥60dB; MM:≥35dB
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
Connector type of the other end MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable





The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.





Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.





G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core 0







Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.



G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core 1







Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.



G652D LSZH Single Mode Duplex Fiber Optic Cable MPO / MTP Trunk Cord 8/12/24 Core 2







Using  temperature



-40° ~ +80°





Application :



Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

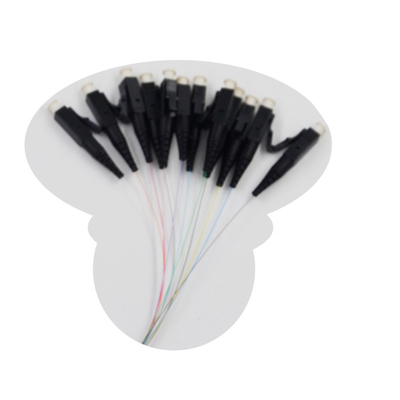

Feature of MPO Breakout Cable

* Quick, highly repeatable, low-loss connections

* Simplex & Duples

* Singlemode & Multimode

* PC, UPC & APC polishing

* Various boot (cable) sizes available

* FC/ LC/ SC/ ST/ MTR/ MPO connectors available

* Interferential parameters

* Hybrid patch-cords are available upon request

* Low Insertion loss

* Low PDL

* Excellent channel-to-channel uniformity

* High return loss and Good repeatability

* Wide wavelength range





Pakcing :



We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged  when delivery .







Delivery :



We can delivery it by air and by sea . it is according to your quantity and requirements .







Payment :



Payment term : T/T , L/C ,  PAYPAL / WESTERN UNION / MONEYGRAM  . 30% deposit in advance . balance paid before delivery  .



Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
