Product Details:
|
| Product Name: | 12 Core Female MPO To LC Fan Out Optic Fiber MPO MTP Cable Patch Cord | Material: | PVC / LSZH |
|---|---|---|---|
| Fiber Type: | OM3 | Connector Type: | MPO Female |
| Mode: | Multi Mode | Fiber Count: | 12 Core |
| Cable Diameter: | 3.0mm | Insertion Loss: | ≤ 0.35dB ( Standard Loss ) |
| Return Loss: | ≥25dB | OEM/ODM: | Acceptable |
| High Light: | 12 Core MPO to LC Cable,Female MPO To LC Cable,MPO MTP Cable 3.0mm |
||

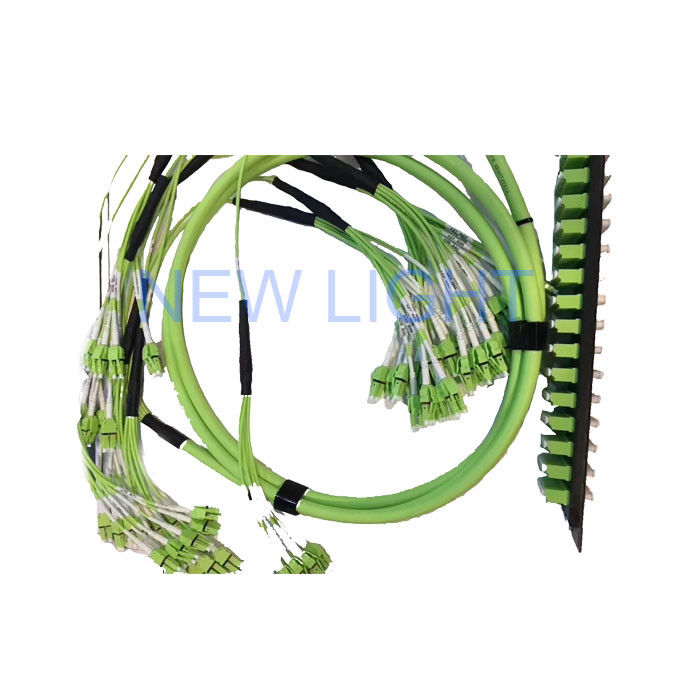

12 core female MPO to LC Fan out Optic Fiber MPO MTP Cable Patch Coard
The singlemode or multimode MPO products available from New Light are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems.
The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.
MPO connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combinations of 4, 8, 12 .16 ,24 or 32 fiber ribbon cables. The MPO Adapter comes standard in black.
1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space
Parameter
| products name | 12 core female MPO to LC Fan out Optic Fiber MPO MTP Cable Patch Coard |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| Methed | regular |
| core type | OM3 ( OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥25 dB |
| wave length | 850/1300 |
| core type | 50/125um |
| connector type | female |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Drawing
Connectory you can choose :
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
