|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Connector:||MTP Mpo||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
LSZH MTP To LC Breakout Cable,
OFNP MTP Breakout Cable,
OFNR MPO Breakout Cable

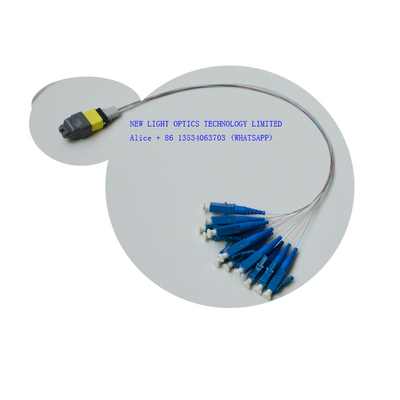

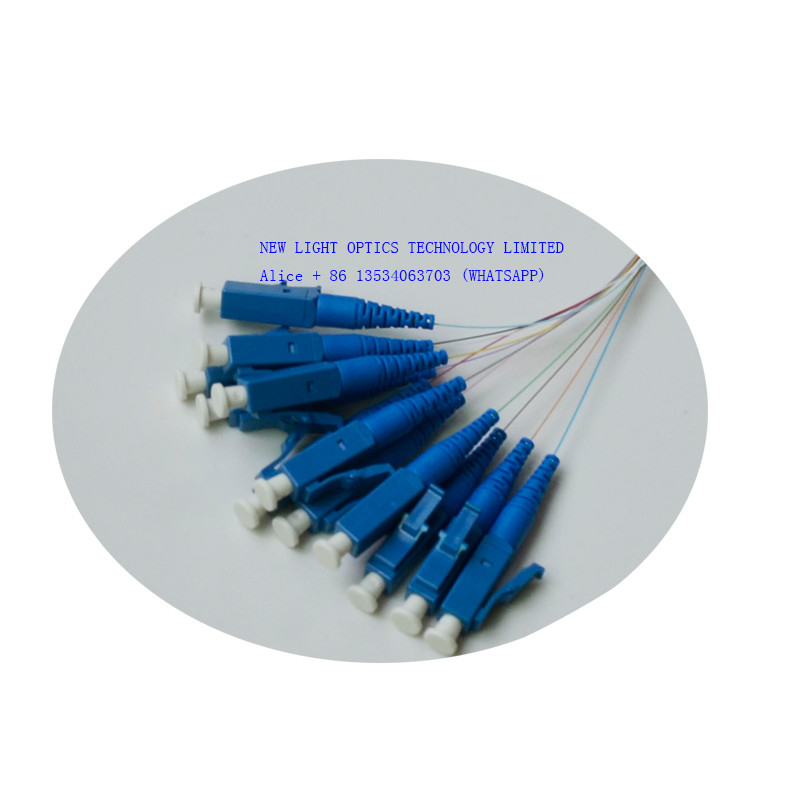

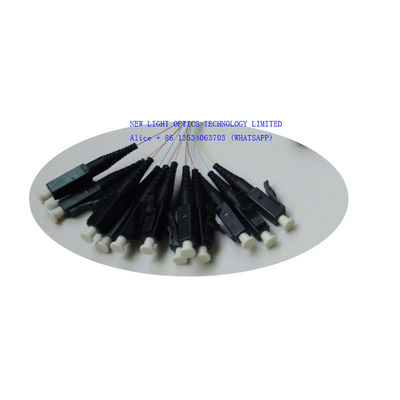

LSZH OFNP OFNR MTP To LC Breakout Cable 12 Core OS2 OM3 Female Type
12 core OS2 OM3 Female Polarity B Plenum mtp to lc breakout cable
Features of MTP To LC Breakout Cable
OM4 Multi Fiber Patch Cable is manufactured with the highest quality corning optical fiber. Connector 1 is terminated with a MTP female (no pins) multi-fiber push-on style contact connection. Connector 2 is also terminated with a MTP female (no pins) multi-fiber push-on style contact connection for reliable connectivity in compact, high density fiber patch cable environments. Each MPO/MTP multi-fiber connector has 12 x 50/125 optical fiber strands in a plenum jacket that is fire retardant, water resistant and free from electromagnetic interference.
All-purpose Fiber Cables
OM4 Fiber Cable is used for high speed fiber optic networking applications in buildings, data centers, telecommunications, etc, also referred to as MM, MMode. It is typically used for vertical pathways, shafts, and spaces between building floors. This LC fiber jumper is designed for performance and built to last in rough, high density cable environments, most commonly used for schools, healthcare facilities, and government buildings.
MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for
MPO MTP Cable Overview
New Light MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MTP® Female to MTP® Female OM4 Multimode Trunk Cable
MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® connectors and Corning ClearCurve® fiber, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
