|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Connector:||MTP Mpo||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
OS2 OM3 MPO MTP Cable,
12 Core Multimode Fiber Cable,
OS2 OM3 Multimode Fiber Optic Cable
OS2 OM3 MPO MTP Cable Polarity B 8 Strand Multimode Fiber Optic Cable
12 core OS2 OM3 Female Polarity B Plenum mtp 24 core fiber optic cable
Features of Multimode Fiber Optic Cable
NEW LIGHT OPTICS TECHNOLOGY LIMITED pre-terminated Plug and Go Fibre System provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.
NEW LIGHT OPTICS MTP® brand pre-terminated assemblies to ensure optimum performance is achieved when interconnecting pre-terminated NEW LIGHT OPTICS cassettes and panels.
Assemblies are available in 12 & 24 fibres, and micro and ruggedised cable in multimode OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125 and singlemode OS1 9/125 options.
NEW LIGHT OPTICS System is manufactured in our own advanced fibre termination facilities under stringently controlled laboratory conditions, and is quality controlled to rigorous standards using advanced fibre interferometer testing equipment.
NEW LIGHT OPTICS pre-terminated assemblies surpass the high standards required for datacomms and CATV applications.
We can manufacture any kind of MTP cable to your exact configuration, please contact us for more information and prices
Quick installation time
Singlemode & multimode performance
Ensure optimum interconnect performance
Up to 24 fibres in one connector
Quality controlled factory
Easy to use MTP® brand connector
40G transceivers that require fibre cables with MTP connectors only need 8 fibres to operate so it would make sense to assume that MTP cables for 40G transceivers have 8 fibre MTP connectors and use 8 fibre cable. However, MTP connectors are also used in 10G networking where the 12 fibre MTP connector is used along with 12 fibre cable. To make it easier for manufacturers, most only use the 12 fibre connector as this will work in all applications and then choose where to use this with either 8 fibre or 12 fibre cable. So a 12 fibre MTP cable with the correct polarity will work in exactly the same way when used in a 40G transceiver as an 8 fibre cable. The only difference is that 4 of the fibres will not be used (they will be dark).
MPO MTP Cable Overview

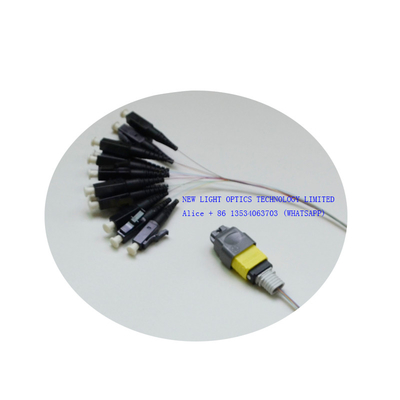

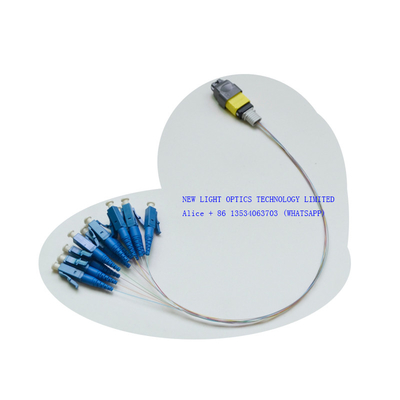

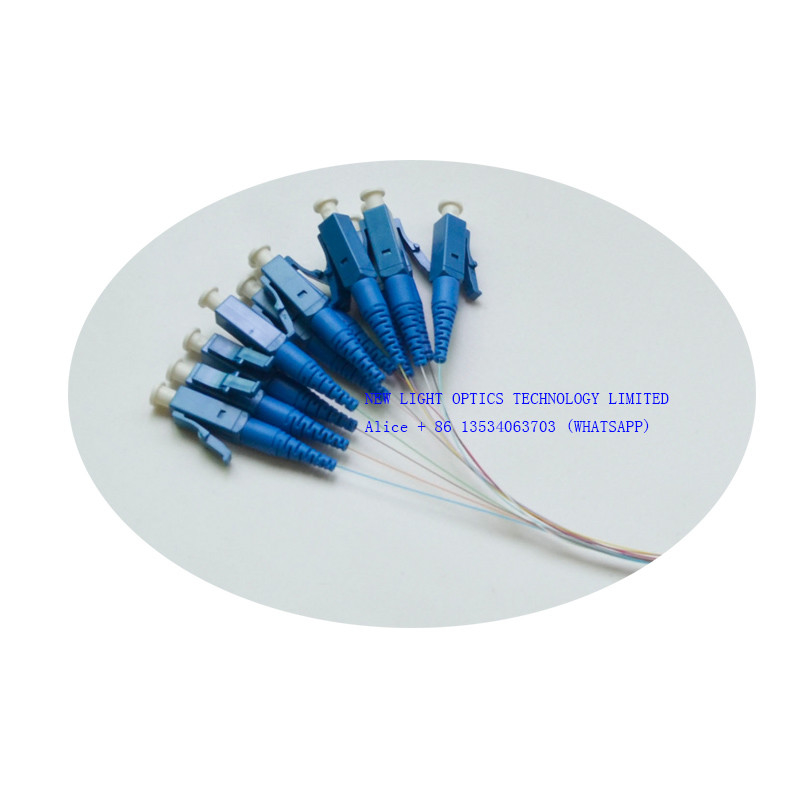

New Light MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
