|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4 OS2||Core Type:||12 Core/24CORE|
|Connector:||MTP Mpo||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
12 Fiber MPO MTP Cable,
100G Plenum MPO MTP Cable,
100G Plenum Multi Fiber Cable
40M OM4 12 Fiber MPO MTP Cable 100G Plenum mtp fiber optic cable
Features of Multi Fiber Cable
NEW LIGHT OPTICS TECHNOLOGY LIMITED pre-terminated Plug and Go Fibre System provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.
NEW LIGHT OPTICS MTP® brand pre-terminated assemblies to ensure optimum performance is achieved when interconnecting pre-terminated

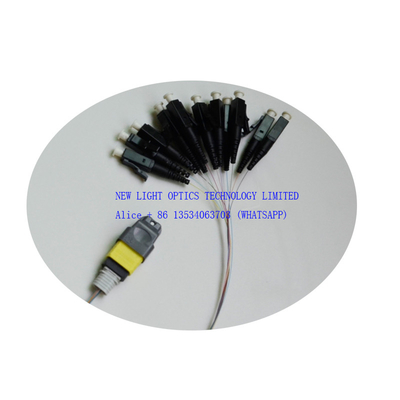

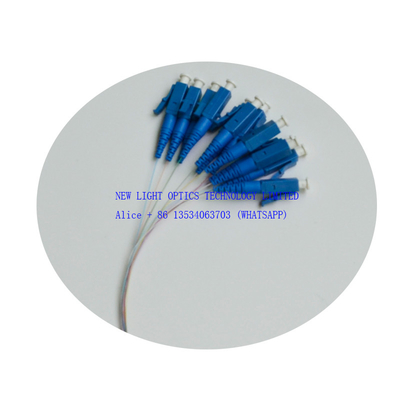

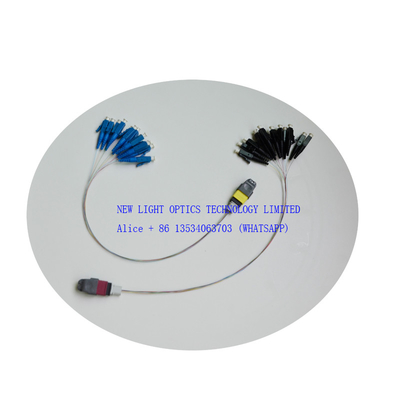

NEW LIGHT OPTICS MTP/MPO harness cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, ST, FC, etc.) on the other end, designed for data distribution and routing to patch panels. These cable assemblies meet the demands of 10G/25G Ethernet, higher speed 40G/100G Ethernet, and can be used for standards-compliant cable plant migration from 10G/25G to 40G/100G. The Opticking harness cables are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material. With highly integrated design and manufacturing capability, Opticking provides customized MTP/MPO harness cables which are 100% tested to deliver optimal performance and reliability.
Ethernet Over OM4 Multimode Fiber 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Basw-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 10Gb Ethernet 10GBase-SR 400m | 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 150m.
Bandwidth: 3600/500 MHz-km @850/1300 nm (OM4 - Optimized for 850nm VCSELs / higher speed).
The application above is for the MTP-LC harness cable connecting a QSFP+ port to (4)SFP+ ports directly.
In many existing DC environments, LC-MTP cables are used to support high density fiber trunks between switches, rack patch panels and main distribution cabling panels .
400G short and medium distance direct connection usually consists of 8-core/12-core MTP patch cable with 400G-DR4 OSFP/QSFP-DD modules. The term “DR4″—”DR” stands for 500m reach using single-mode fiber and “4” implies there are 4 x 100 Gbps optical channels. Since one optical channel requires two fibers, an 8-fiber or a 12-core MTP/MPO cable can be used for the 400G-DR4 module to achieve direct connection. In the 8-fiber MTP cabling, the fiber utilization is 100%, while in the 12-core MTP cabling, four fibers remain unused. Take 400G QSFP-DD module as an example, the following picture is presenting the MTP cabling for 400G DR4 direct connection.
100m span with 16-fiber MTP/MPO cable
The 400G-SR8 transceivers require the use of a 16-core MTP cable. The term “SR8” – “SR” stands for a distance of 100 meters using multimode fiber, and “8” implies there exist 8 optical channels with each operating at 50Gbps. In this direct connection, the 16-core MTP cable has 100% fiber utilization. The primary adopters of these 400G-SR8 fiber transceivers are expected to be certain hyperscale cloud service providers in North America and China.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
