Product Description:
Description:

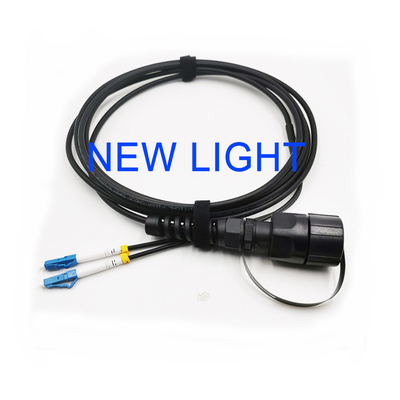

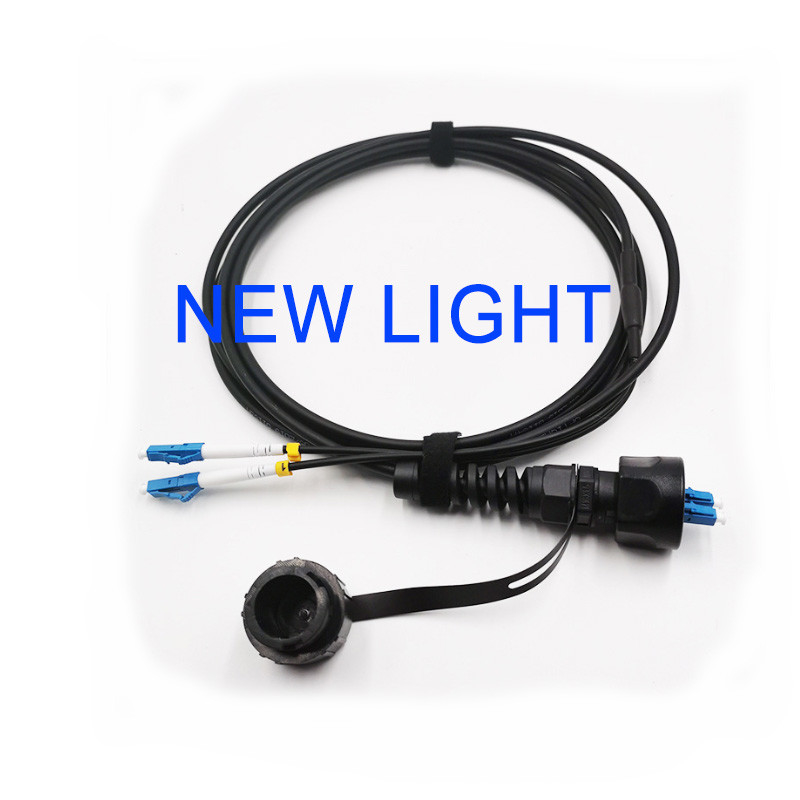

The ODC Connector together with the far transmission cable, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.
Feature:
Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.
Application:
Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control.
Intelligent substation
| Cable Jacket |
Fiber Grade |
Fiber Count |
Return Loss |
Cable Diameter |
| TPU / PVC |
G652D, G657A2, OM3, OM4 |
2 Core / 4 Core |
≥50dB |
5.0mm |
Key Features
- High speed transmission
- Low insertion loss
- High return loss
- Reliable connection
- Available in various grades
- 2 or 4 cores for different needs
- TPU or PVC jacket for different environments
- Meets industry standards for quality and performance
| Technology |
|
Full ceramic ferrule and sleeve |
| Housing material |
|
Nickel plated brass |
| Mechanical performance |
ODC plug |
≤1000 N tensile load≤30 N static side load |
| ODC socket |
≤30 N tensile load |
| Installation torque force |
min.1Nm |
max.2Nm |
| Operating temperature |
IEC 61300 – 2 – 22 |
-40℃ up to +85℃ |
| Mating durability |
|
1000 cycle |
| Ingress protection(mate) |
IEC60529 |
Ip 68 |
| Salt mist |
IEC61300-2-26 |
30 days passed |
| Vibration |
IEC61300-2-1 |
Pass 10-500Hz/10g |
| Shock |
IEC61300-2-9 |
Pass 100g |
Technical Specifications
- Fiber Type: Single mode (G652D, G657A2) or Multimode (OM3, OM4)
- Connector Type: LC, SC, ST, FC, MPO
- Insertion Loss: <0.2dB (single mode), <0.3dB (multimode)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Tensile Strength: >200N
- Crush Resistance: >500N/100mm
Technical Parameters:
| Product Name |
Optical Fiber Patch Cord |
| Cable Length |
50m, 100m, 200m, 250m, 300m, Etc. |
| Fiber Grade |
G652D, G657A2, OM3, OM4 |
| Connector Type |
LC, SC, ST, FC, MTRJ, MU, E2000, Etc. |
| Color |
Black |
| Operating Temperature |
-40℃~+85℃ |
| Cable Jacket |
TPU / PVC |
| Fiber Count |
2 Core / 4 Core |
| Return Loss |
≥50dB |
| Durability |
≥1000 Times |
Applications:
Optical Fiber Patch Cord - Your Reliable Communication Solution
The Optical Fiber Patch Cord by New Light is a high-quality product that provides a reliable and efficient communication solution for various industries. With its advanced technology and superior features, it has become a popular choice for many customers worldwide.
Product Attributes
- Brand Name: New Light
- Model Number: NL01011
- Place of Origin: China
- Certification: ISO
- Minimum Order Quantity: 100
- Price: Negotiated
- Packaging Details: 46*46*26cm
- Delivery Time: 7-15 working day
- Payment Terms: TT , Paypal
- Supply Ability: 100000
- Cable Jacket: TPU / PVC
- Application: FTTA, FTTB, CATV, LAN, Etc.
- Product Name: Optical Fiber Patch Cord
- Fiber Grade: G652D , G657A2 ,OM3, OM4
- Color: Black
Application
The Optical Fiber Patch Cord is a versatile product that can be used in various applications such as:
- FTTA (Fiber to the Antenna) - Used for connecting remote radio heads to the base station equipment in wireless communication systems.
- FTTB (Fiber to the Building) - Used for connecting buildings to a central office or data center.
- CATV (Cable Television) - Used for transmitting television signals over long distances.
- LAN (Local Area Network) - Used for connecting devices within a limited area such as an office or a building.
Product Features
- High-Quality Materials - The Optical Fiber Patch Cord is made of top-grade materials that ensure durability and reliability.
- Easy to Install - The patch cord is designed for easy installation, making it a convenient choice for customers.
- Multiple Fiber Grades - The patch cord is available in different fiber grades (G652D, G657A2, OM3, OM4) to meet the specific needs of customers.
- Various Cable Jackets - Customers can choose between TPU and PVC cable jackets, depending on their requirements.
- Color-Coded Connectors - The connectors are color-coded for easy identification and installation.
- Wide Range of Applications - The patch cord can be used in various applications, making it a versatile and cost-effective solution.
Why Choose New Light's Optical Fiber Patch Cord?
There are many reasons why the Optical Fiber Patch Cord by New Light is the preferred choice for customers:
- Reliable and Efficient - Our patch cords are designed to provide a reliable and efficient communication solution for our customers.
- Competitive Pricing - We offer competitive prices for our high-quality products, making it a cost-effective choice for customers.
- Quick Delivery - With our efficient supply chain management, we ensure prompt delivery of our products within 7-15 working days.
- Superior Customer Service - Our team is dedicated to providing excellent customer service and support to our clients.
- Customization - We offer customization options to meet the specific needs of our customers.
Conclusion
The Optical Fiber Patch Cord by New Light is a top-of-the-line product that offers a reliable and efficient communication solution for various industries. With its advanced technology, superior features, and competitive pricing, it is the perfect choice for all your communication needs. Contact us today to learn more about our product and how it can benefit your business.
Customization:
Optical Fiber Patch Cord - Customized Service
Brand Name: New Light
Model Number: NL01011
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: 46*46*26cm
Delivery Time: 7-15 working day
Payment Terms: TT, Paypal
Supply Ability: 100000
COLOR: BLACK
Fiber Count: 2 Core / 4 Core
Storage Temperature: -40℃~+85℃
Cable Diameter: 5.0mm
Application: FTTA, FTTB, CATV, LAN, Etc.
Customized Options:
- Fiber Cable Type: single mode, multimode
- Fiber Jumper Length: 1m, 2m, 3m, customized length
- Fibra Patch Cord Connector Type: SC, LC, FC, ST, MTP/MPO, etc.
- Fiber Optic Cable Diameter: 0.9mm, 2.0mm, 3.0mm, etc.
- Customized Printing: company logo, serial number, etc.
- Customized Packaging: blister box, carton box, etc.
- Customized Labeling: product name, specifications, etc.
With our customized service, you can choose the best combination of fiber cable, fiber jumper, fibra patch cord, and fiber optic cable to meet your specific needs. Our team of experts will work closely with you to ensure the highest quality and performance for your optical fiber patch cord.
Packing and Shipping:
Packaging and Shipping of Optical Fiber Patch Cord:
Each optical fiber patch cord is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials used are of high quality and provide protection against any potential damage during transit.
The patch cords are first wrapped in a layer of bubble wrap to prevent any scratches or dents. They are then placed in a sturdy cardboard box and sealed with packaging tape to ensure they stay in place during shipping.
We also offer custom packaging options for bulk orders, where the patch cords can be packaged in larger boxes or crates for ease of transportation.
For shipping, we use trusted and reliable carriers such as DHL, FedEx, and UPS to ensure timely and efficient delivery of our products to our customers. We also provide tracking information for all orders so that customers can keep track of their delivery status.
At Optical Fiber Co., we understand the importance of safe and prompt delivery, and we strive to provide the best packaging and shipping services for all our customers.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name is New Light.
- Q: What is the model number of this product?
- A: The model number is NL01011.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: What certification does this product have?
- A: This product is certified with ISO.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity is 100 pieces.
- Q: Is the price negotiable for this product?
- A: Yes, the price can be negotiated according to the order quantity.
- Q: How is this product packaged?
- A: The product is packaged in a box with dimensions of 46*46*26cm.
- Q: What is the estimated delivery time for this product?
- A: The estimated delivery time is 7-15 working days.
- Q: What are the payment terms for this product?
- A: The payment terms accepted are TT and Paypal.
- Q: What is the supply ability for this product?
- A: The supply ability is 100,000 pieces per month.
