Pro-Grade CAT7 Shielded RJ45 Plugs + Ferrite Cores - 10Gbps Ready

Brand Name:	NEW LIGHT
Model Number:	NLC001
MOQ:	100
Price:	0.02~10
Packaging Details:	export packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

Rj45 Connector

Application:

Cat6 , Cat6a , Cat7

Material:

Tester:

Fluke-tested

Network Module:

Cat5 / Cat6

Surface:

Cat5e:

100Mhz

Cat6:

250 MHz

Cat7:

600MHz

Cable:

UTP / SFTP / SSTP

Supply Ability:

1000000

Highlight:

10Gbps Ready RJ45 Plugs

Ferrite Cores RJ45 Plugs

10Gbps RJ45 Plugs

Product Description

Pro-Grade CAT7 Shielded RJ45 Plugs + Ferrite Cores - 10Gbps Ready

Description: CAT7 connectors with integrated ferrite cores eliminate high-frequency noise. Ideal for server rooms and smart home installations requiring 10G speeds.

Product Name: CAT7 Shielded RJ45 Connectors with Integrated Ferrite Cores
Model Number: [Insert Model Number]
Application: Server Rooms, Data Centers, Smart Home Networks, High-Speed Industrial Systems

Key Features:

10Gbps Ready Performance:
- Supports bandwidth up to 600 MHz, enabling ultra-fast 10 Gigabit Ethernet speeds.
- Ideal for high-density data environments, 4K/8K streaming, and low-latency applications.
Integrated Ferrite Cores:
- Eliminates high-frequency EMI/RFI noise for crystal-clear signal transmission.
- Reduces signal distortion and crosstalk in electrically noisy environments.
Heavy-Duty Shielding:
- Triple-layer shielding (foil + braid + ferrite core) ensures maximum interference protection.
- Full 360° metal shielding jacket with gold-plated contacts (50μ") for optimal conductivity.
Pro-Grade Durability:
- Zinc alloy shell with corrosion-resistant coating for rugged industrial use.
- Operating temperature range: -40°C to +85°C (-40°F to +185°F).

Technical Specifications:

Standard: CAT7 (ISO/IEC 61076-3-104)
Bandwidth: 600 MHz
Data Rate: 10 Gbps
Shielding: Triple-layer (foil + braid + ferrite core)
Contact Material: Gold-plated pins (50μ")
Insertion Loss: ≤0.2 dB @ 600 MHz
Return Loss: ≥20 dB @ 600 MHz
Cable Compatibility: CAT7 S/FTP, 22–28 AWG
Durability: ≥1,500 mating cycles
Voltage Rating: 125V AC, 1.5A

Applications:

Enterprise server rooms and hyperscale data centers
Smart home automation (HDMI over IP, 8K media systems)
Industrial IoT (IIoT) and factory automation
High-frequency trading (HFT) networks
Medical imaging and lab equipment connectivity

Certifications & Compliance:

Standards: ISO/IEC 11801-1, TIA/EIA-568-C.2
EMI/RFI Compliance: FCC Part 15, CISPR 32
Safety: RoHS, REACH, UL94 V-0 (flame-retardant housing)
Shielding Efficiency: >90 dB noise suppression

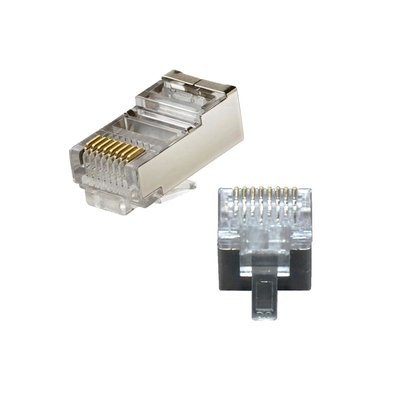

Pro-Grade CAT7 Shielded RJ45 Plugs + Ferrite Cores - 10Gbps Ready 0

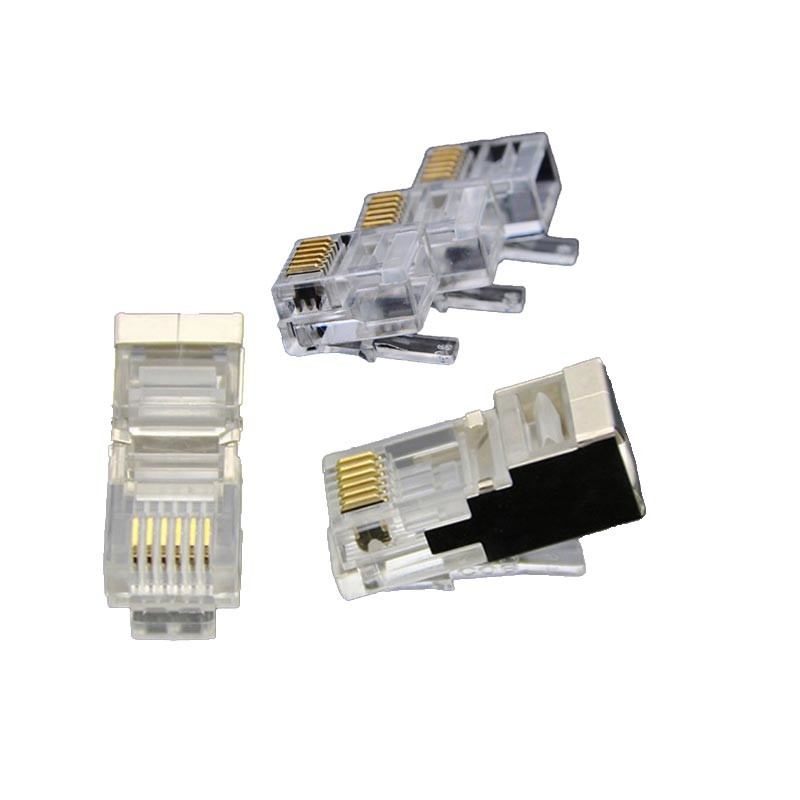

Pro-Grade CAT7 Shielded RJ45 Plugs + Ferrite Cores - 10Gbps Ready 1
