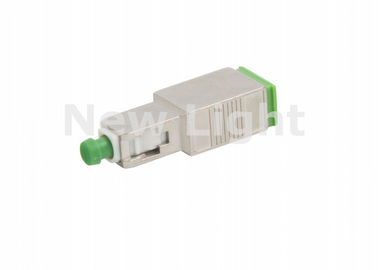

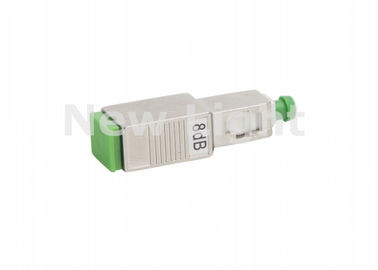

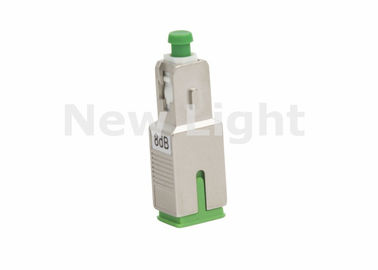

8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement

8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement

    • 8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement
    • 8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement
    • 8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement
  • 8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiate
    Packaging Details: 10pcs per pack
    Delivery Time: 2 weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000/month
    Contact Now
    Detailed Product Description
    Color: Green Connector: SC
    Polish: APC Mode: Single Mode
    Attenuator: 8dB Material: Metal

    8dB SC / APC Optical Fiber Attenuator For Test and Measurement single mode Green color


    Quick details:


    Model Number: SM SC/APC

    Material: metal

    Attenuator: 8 dB

    Connector: SC/APC


    SC/APC Attenuator Dtail:


    We offers an extensive line of dual wavelength (1310/1550nm) Singlemode fiber optic attenuators. These versatile in-line attenuators are the perfect solution for attenuating Singlemode fiber connectors for both lab and commercial applications. Constructed of the highest quality materials and factory tested, this series offers the widest array of connector styles and polish types.


    Features:



    Used to attenuate Single mode fiber connectors/connections
    Inline design accommodates fast and easy installation
    Ceramic ferrules provide precise alignment
    Dual Wavelength (1310/1550nm) support offers multi-application flexibility
    Attenuating material-Ion Doped Fiber

    Applications:

    Test and measurement
    FTTX



    Specification:



    Attenuation Value 1dB ~ 30dB
    Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
    Premium
    Return Loss UPC >55dB
    APC >65dB

    Attenuation

    Accuracy

    1 ~ 7 dB ±0.5dB
    8 ~ 12 dB ±0.7dB
    13 ~ 17 dB ±1.0dB
    18 ~ 25 dB ±1.3dB
    Maximum Optical Input Power 1000mW
    Polarization Dependent Loss ≤0.1dB
    Operating Temperature Range -40 to 75
    Storage Temperature Range -40 to 85
    Humidity 95%RH




    8dB SC / APC Fiber Optic Attenuator Single Mode For Test / Measurement
