Fiber Optic Transceiver
>
10Gb/s SFP+ Bi-Directional Fiber Optic Transceiver with LC Connector for 40km Single Mode Applications

10Gb/s SFP+ Bi-Directional Fiber Optic Transceiver with LC Connector for 40km Single Mode Applications

Brand Name: New Light
MOQ: 1
Price: 3.5~20
Packaging Details: export packing
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Name:
SFP BIDI Transceiver
Distance:
40km
Mode:
Single Mode
Data Transfer Rate:
10G
Wavelength:
1270/1330nm
Connector Type:
LC
Supply Ability:
1000000
Highlight:

gigabit ethernet transceiver

,

single mode fiber transceiver

Product Description

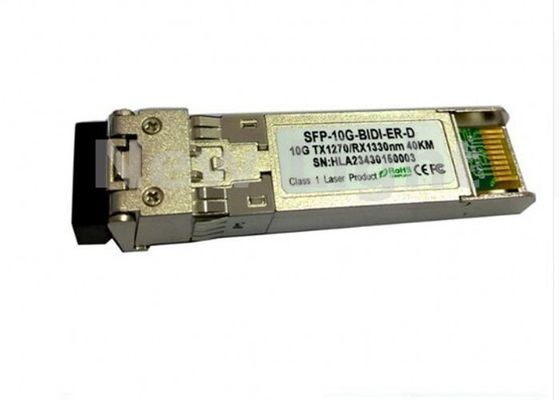

10Gb/s Fiber Optic Transceiver / SFP+ Bi-Directional Transceiver 40km With LC Connector
RoHS Compliant 10Gb/s SFP+ Bi-Directional Transceiver, 40km single mode with LC connector
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature -40 85 °C
Relative Humidity 85 %
Stress in excess of the maximum absolute ratings can cause permanent damage to the module
Key Features
  • Supports 9.95Gb/s to 10.3Gb/s data rates
  • Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
  • Digital Diagnostic SFF-8472 Compliant
  • Hot pluggable
  • 1:1270nm DFB Laser transmitter, 1330nm receiver
  • 2:1330nm DFB Laser transmitter, 1270nm receiver
  • Up to 40km on 9/125um SMF
  • SFP+ MSA SFF-8431 Compliant
  • Operating case temperature: 0 to 70 °C
Applications
  • 10GBASE-ER at 10.3125Gbps
  • 10GBASE-EW at 9.953Gbps
  • Other optical links
General Operating Characteristics
Parameter Symbol Min. Typ Max. Unit Note
Data Rate Ethernet 10.3125 Gb/s
Fiber Channel 10.518
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc5 mA
Supply Current Icc3 400 mA
Operating Case Temp. Tc 0 70 °C
Electrical Input/Output Characteristics
Transmitter
Parameter Symbol Min. Typ Max. Unit Note
Diff. input voltage swing 120 820 mVpp 1
Tx Disable input H VIH 2.0 Vcc+0.3 V
Tx Disable input L VIL 0 0.8 V
Tx Fault output H VOH 2.0 Vcc+0.3 V 2
Tx Fault output L VOL 0 0.8 V
Input Diff. Impedance Zin 100 Ω
Receiver
Parameter Symbol Min. Typ Max. Unit Note
Diff. output voltage swing 340 650 800 mVpp 3
Rx LOS Output H VOH 2.0 Vcc+0.3 V 2
Rx LOS Output L VOL 0 0.8 V
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Optical Characteristics
Transmitter
Parameter Symbol Min. Typ Max. Unit Note
Operating Wavelength 1260 1270 1280 nm
Operating Wavelength 1320 1330 1340 nm
Ave. output power (Enabled) Po 0 4 dBm 1
Extinction Ratio ER 5 dB 1
RMS spectral width Δλ 1 nm
Rise/Fall time (20%~80%) Tr/Tf 50 ps 2
Optical modulation amplitude OMA -6.2 dBm
Dispersion penalty 1 dB
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Parameter Symbol Min. Typ Max. Unit Note
Operating Wavelength 1320 1330 1340 nm
Operating Wavelength 1260 1270 1280 nm
Sensitivity Psen -15 dBm 3
Min. overload Pimax 0.5 dBm
LOS Assert Pa -30 dBm
LOS De-assert Pd -16 dBm
LOS Hysteresis Pd-Pa 0.5 4 dB
Note 1) Measured at 10.3125b/s with PRBS 231 - 1 NRZ test pattern.
Note 2) 20%~80%
Note 3) Under the ER worst case, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Pin Definitions and Functions
Pin Symbol Name/Description
1VEET [1]Transmitter Ground
2Tx_FAULT [2]Transmitter Fault
3Tx_DIS [3]Transmitter Disable. Laser output disabled on high or open
4SDA [2]2-wire Serial Interface Data Line
5SCL [2]2-wire Serial Interface Clock Line
6MOD_ABS [4]Module Absent. Grounded within the module
7RS0 [5]Rate Select 0
8RX_LOS [2]Loss of Signal indication. Logic 0 indicates normal operation
9RS1 [5]Rate Select 1
10VEER [1]Receiver Ground
11VEER [1]Receiver Ground
12RD-Receiver Inverted DATA out. AC Coupled
13RD+Receiver DATA out. AC Coupled
14VEER [1]Receiver Ground
15VCCRReceiver Power Supply
16VCCTTransmitter Power Supply
17VEET [1]Transmitter Ground
18TD+Transmitter DATA in. AC Coupled
19TD-Transmitter Inverted DATA in. AC Coupled
20VEET [1]Transmitter Ground
