Patch cords provide optical connection for fiber optic electronics, offering a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

Key Characteristics

Simplex and duplex connector options available
High precision mechanical dimensions
Excellent exchange ability and durability
Low insertion loss with high temperature stability
Fan-out, pigtail, and various boot size options

Technical Specifications

Connector	LC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Simplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40~75℃	Storage Temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Applications

Optical fiber communication systems
Optical fiber test equipment
Optical fiber access networks
Optical fiber sensors
Optical fiber CATV systems
Optical fiber data transmission
Local area networks

Product Features

Exceptional durability and exchangeability
High temperature stability performance
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Tags:

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord

Products Details

Home > Products >

Optical Fiber Patch Cord

Single Mode LC to SC Fiber Optic Patch Cable with High Temperature Stability and 2.0mm Diameter

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

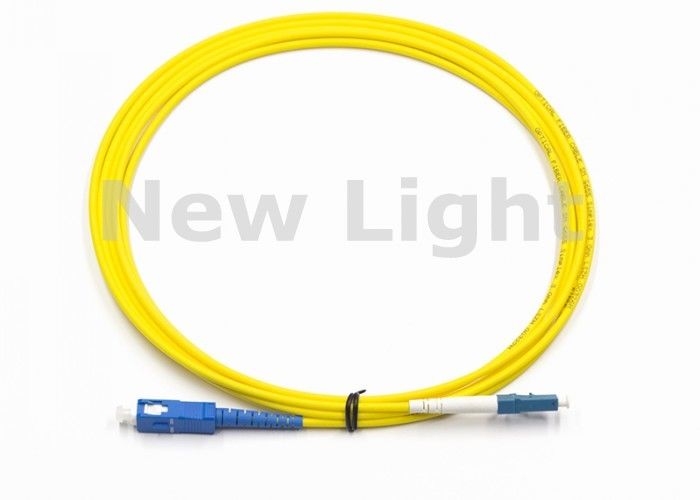

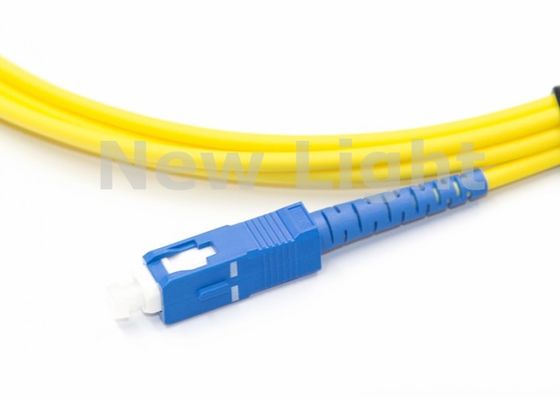

Single Mode LC to SC Fiber Optic Patch Cable with High Temperature Stability and 2.0mm Diameter

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

Fiber Optic Cable LC SC

Diameter:

2.0mm

Model:

Single

Connector:

LC-SC

Color:

Yellow

Length:

1 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:
