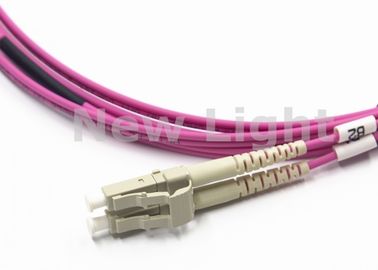

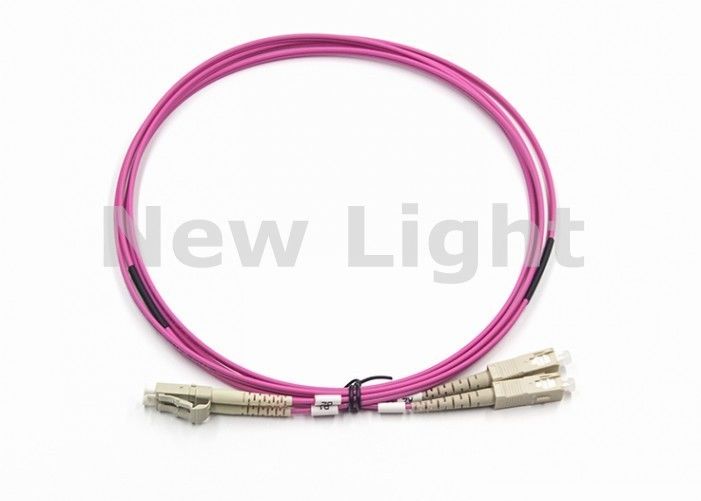

LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125

LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125

    • LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125
    • LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125
  • LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125

    Product Details:

    Place of Origin: China
    Brand Name: NewLight
    Certification: IS09001-2008.ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negoatiate
    Packaging Details: 1 pcs per pack
    Delivery Time: 3 to 5 working day
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Name: LC-SC Fiber Patch Cord Diameter: 2.0mm
    Model: Multimode Connector: LC-SC
    Color: Purple Length: 1 Meter



    LC UPC to SC UPC Fiber Patch Cable Duplex 2.0mm PVC(OFNR) OM4 Multimode 50/125





    Description:



    Provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

    Optical patch cord is a kind of optical components including the optical connector plug at each ends of optical cable (one plug at one end called pigtail), is use to achieve optical line active connection.Optical fiber patch cord is used for long distance and local optical transmission network,data transmission and private network,and a variety of test and control system. Optical patch cord is through precision equipment through multiple machining processes fine grinding and has the merit of low insertion loss,high return loss,good repeatability,and can be widely used in various optical devices and optical fiber communication system.



    Parameters:



    Conector type FC,SC,ST,LC,MU
    Single Mode Multimode
    Endface PC UPC APC PC
    Insert loss(dB) ≤0.30 ≤0.30
    Exchangeability(dB) ≤0.20 ≤0.20
    Repeatability(dB) ≤0.10
    Return loss(dB) ≥45 ≥50 ≥60 ≥35
    Core/Caldding diameter 9/125 50/125 or 625.5/125
    Durability >1000
    Operating temperature -25~+80 degree





    Specification:



    Connector LC to SC Jacket OD 2.0mm
    Fiber Mode 9/125µm Jacket Color Purple
    Polish UPC to UPC Wavelength 1310/1550nm
    Fiber Type Duplex Jacket Material PVC
    Insertion loss ≤0.3dB Interchangeability ≤0.2dB
    Return loss ≥50dB Vibration ≤0.2dB
    Operating temperature -40~70℃ Storage temperature -45~85℃
    Polarity A(Tx) to B(Rx) Fiber Grade G652D



    Ordering Options:



    Connector type SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc
    Polish UPC,APC,PC
    Cable type Simplex,Duplex straight,Duplex Reverse
    Fiber SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655)
    Cable Jacket Riser,Plenum,LSZH
    Cable Diameter 3.0mm,2.0mm,0.9mm,etc
    Cable Length Length in meter





    Features:



    * Good durability

    * Good exchangeability

    * High temperature stability

    * Low insertion loss and back reflection loss

    * Superior quality standard PC/UPC/APC Polishing

    * Standard: Telcordia GR-326-CORE,TIA/EIA and IEC



    Application:



    * Optical fiber communication system

    * Optical fiber test equipment

    * Optical fiber access network

    * Optical fiber sensor

    * Optical fiber CATV system

    * Optical fiber data transmission

    * Local area network



    LC UPC To SC UPC Optical Fiber Patch Cord Duplex 2.0mm PVC OM4 Multimode 50 / 125
