1 Meter SC-FC Single Mode Optical Fiber Patch Cord for Active Device Termination

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC-FC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

SC-FC

Color:

Yellow

Length:

1 Meter

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

SC/UPC to FC/UPC Simplex Optical Fiber Patch Cord

1M LC UPC to LC UPC Fiber Patch Cable Duplex 2.0mm PVC(OFNR) 9/125 Single Mode Yellow

Product Specifications

Model NO.	Fiber Optic Patch Cord
Style	LC, SC, ST, FC, MU, MPO, SC/APC, FC/APC, LC/APC, MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2 & OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC, SPC, APC (8° & 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Product Description

Fiber optic patch cords are essential components of optical networks. They feature various connector types installed on fiber optic cable ends. Our comprehensive patch cord series offers a wide range of lengths and connectors to meet diverse application requirements.

Technical Parameters

Connector: SC to FC

Fiber Mode: 9/125µm

Polish: UPC to UPC

Fiber Type: Simplex

Insertion loss: ≤0.3dB

Return loss: ≥50dB

Operating temperature: -40~75℃

Polarity: A(Tx) to B(Rx)

Jacket OD: 2.0mm

Jacket Color: Yellow

Wavelength: 1310/1550nm

Jacket Material: PVC

Interchangeability: ≤0.2dB

Vibration: ≤0.2dB

Storage temperature: -45~85℃

Fiber Grade: G652D

Product Features

Excellent durability and reliability
Superior interchangeability
High temperature stability
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Applications

Telecommunication networks
Video transmission systems
Gigabit Ethernet
Active device termination
Multimedia applications
Premise installations
FTTH TTX applications
Local area networks
CATV systems

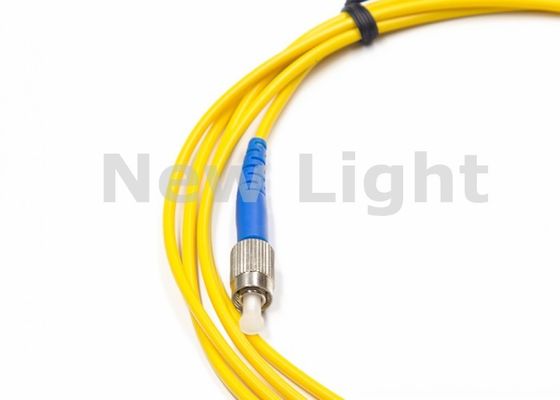

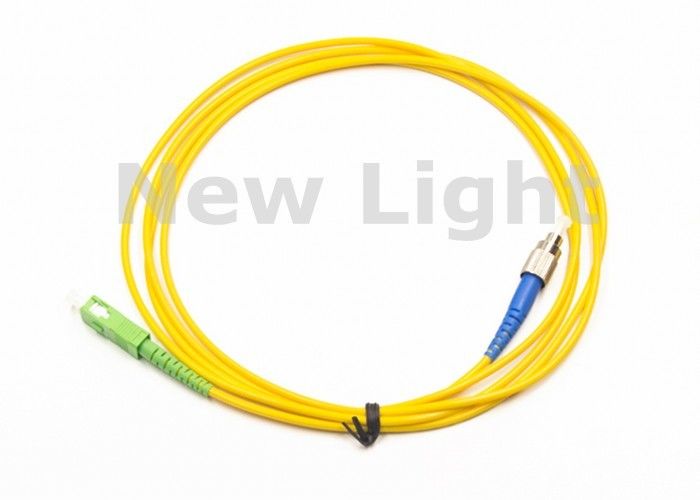

Product Image

Packaging Details

Inner packing	1 piece per plastic bag
Minimum order	100 pcs
100 pcs Gross weight	2-3kg
Outer packing	Carton box
