| Brand Name: | New Light |
| Model Number: | FC / PC |
| MOQ: | 10 pcs |
| Price: | can be negotiated |
| Packaging Details: | standard packing |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram , Paypal |
Description :

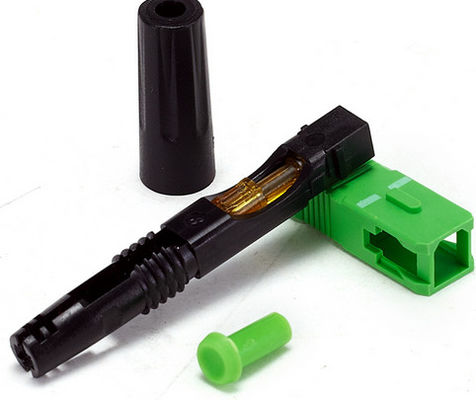

SC APC fiber optic connectors Quick feild assembly connector for patch cable
SC APC quick Field assembly optical fast connector
The field assembly optical connector is designed to simplify the connection without fusion splicer. This connector is quick assembly which requires only normal fiber preparation tools like cable stripper and fiber cleaver. The connector adopts Fiber Pre-Embedded (FPE) technique with superior ceramic ferrule.
The fast connector is designed for high quality and high efficiency for installation.
The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.The connector is adopted fiber pre-installed structure and could be reused, and convenient for field installation.
SC-PC Fiber Optic Connector
Technical Parameters
| Item | Paramete |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM/ MM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Naked Fiber | >10 N |
| Teperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Main Features
High performance
Minimum tooling requirements
Easy on-site installation
Pre-embedded fiber
Re-usable in the field
No epoxy or polishing required
Low insertion loss
High return loss
Low cost
Reliability
Low environmental sensitivity
Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects
Fiture :
High performance
Minimum tooling requirements
Easy on-site installation
Pre-embed fiber
Re-usable in the field
No epoxy or polishing required
Low insertion loss
High return loss
Low cost
Reliability
Low environmental sensitivity
Ease of use
Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects
Packing
Company profile
Quality control :
Delivery and payment
More products :
