Connector	LC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	APC to APC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
RoHS compliant construction
100% optically tested for insertion loss

Technical Parameters

Parameter	Single Mode	Multimode
Insert loss (dB)	≤0.30	≤0.30
Exchangeability (dB)	≤0.20	≤0.20
Repeatability (dB)	≤0.10	≤0.10
Return loss (dB)	≥45 (PC) ≥50 (UPC) ≥60 (APC)	≥35
Core/Cladding diameter	9/125	50/125 or 62.5/125
Durability	>1000 cycles
Operating temperature	-25°C to +80°C

Available Configurations

Connector types: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: Single mode, polarization-maintaining, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Fiber count: Single-core, dual-core, and multi-core connectors

Tags:

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord

Products Details

Home > Products >

Optical Fiber Patch Cord

Single Mode LC-SC Fiber Optic Patch Cord with APC Polish and 2.0mm Diameter for High Performance Networks

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

Single Mode LC-SC Fiber Optic Patch Cord with APC Polish and 2.0mm Diameter for High Performance Networks

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC - SC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

LC-SC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

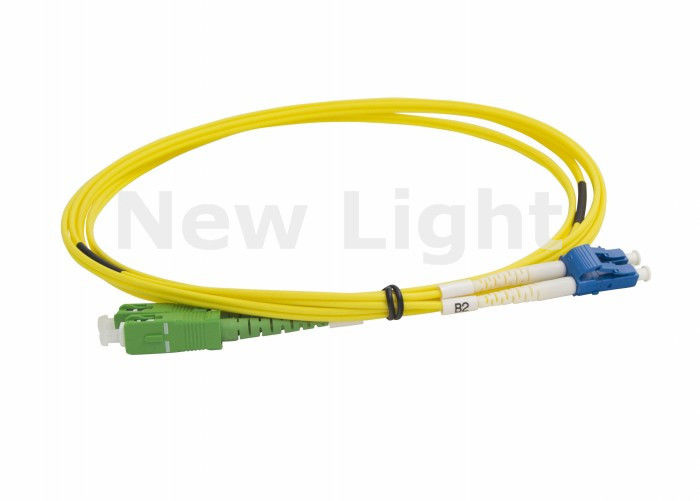

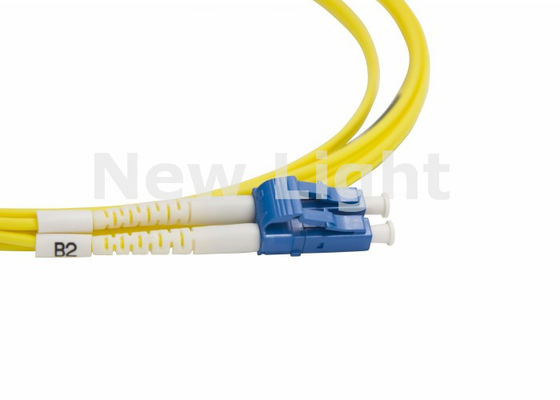

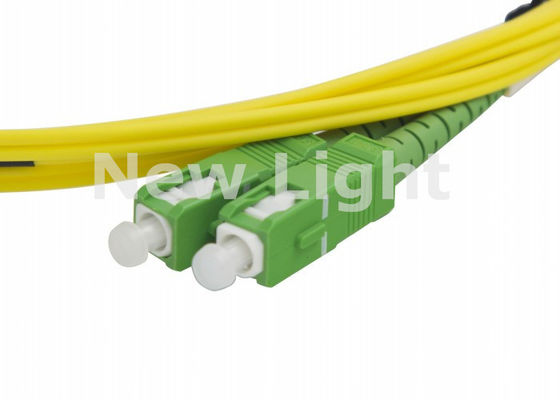

LC-SC Single Mode Fiber Optic Patch Cord

LC-SC Single mode 9/125 Duplex Optical fiber patch cord with PVC Yellow cable and APC polish connector

Standards Compliance

Meets IEC standards for fiber optic connectors
Complies with Telcordia GR-326 technical requirements

Customization Options

Optical fiber specification
Connector end face shape
Optical cable structural form
Patch cord length
Connector type
Additional custom requirements

Applications

Telecommunication networks
Video transmission systems
Gigabit Ethernet
Active device termination
Multimedia systems
Premise installations
FTTH/FTTX applications
Local area networks
CATV systems

Product Specifications

Connector	LC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	APC to APC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
RoHS compliant construction
100% optically tested for insertion loss

Technical Parameters

Parameter	Single Mode	Multimode
Insert loss (dB)	≤0.30	≤0.30
Exchangeability (dB)	≤0.20	≤0.20
Repeatability (dB)	≤0.10	≤0.10
Return loss (dB)	≥45 (PC) ≥50 (UPC) ≥60 (APC)	≥35
Core/Cladding diameter	9/125	50/125 or 62.5/125
Durability	>1000 cycles
Operating temperature	-25°C to +80°C

Available Configurations

Connector types: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: Single mode, polarization-maintaining, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Fiber count: Single-core, dual-core, and multi-core connectors
