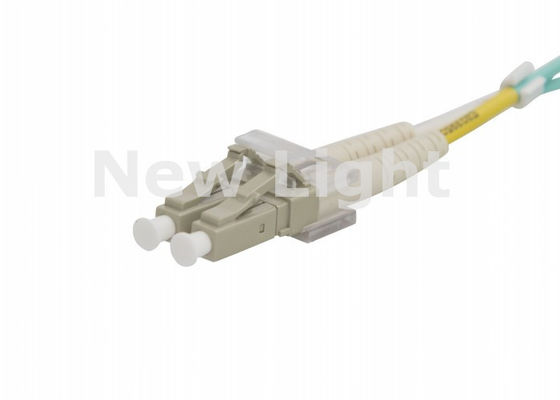

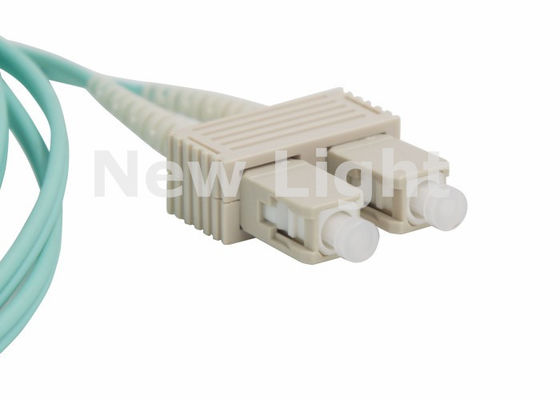

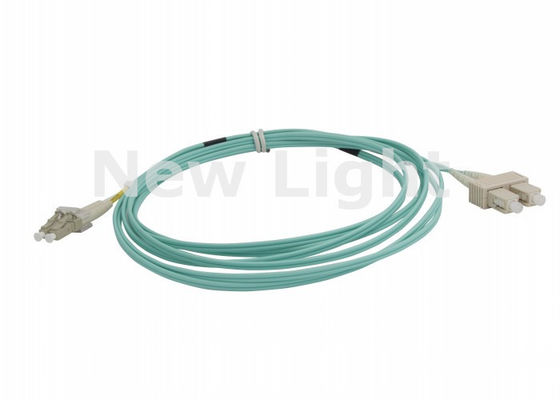

This 3-meter LC-SC multimode 50/125 duplex optical fiber patch cord features PC polish connectors with PVC aqua cable construction, designed for reliable high-performance network connectivity.

Product Specifications

Connector Type	LC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Green
Polish	APC to APC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Technical Parameters

Parameter	Single Mode	Multimode
Insert Loss (dB)	≤0.30	≤0.30
Exchangeability (dB)	≤0.20	≤0.20
Repeatability (dB)	≤0.10	≤0.10
Return Loss (dB)	≥45	≥35
Durability	>1000 cycles
Operating Temperature	-25°C to +80°C

Key Features

Excellent versatility and interchangeability
Stable and reliable connections with high repeatability
Low insertion loss and high return loss performance
RoHS compliant construction
100% optically tested for quality assurance

Applications

Optical fiber communication systems
Optical fiber test equipment
Optical fiber access networks
Optical fiber sensors
Optical fiber CATV systems
Optical fiber data transmission
Local area networks

Compliance Standards

Meets IEC standards for fiber optic connectors and technical requirements of Telcordia GR-326.

OEM Services Available: Customization options include fiber connector types, cable length, color, fiber grade, specifications, materials, and packaging to meet specific application requirements.

Tags:

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord

Products Details

Home > Products >

Optical Fiber Patch Cord

3 Meter LC-SC Multimode Duplex Fiber Optic Patch Cable for High-Speed Data Transmission

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

3 Meter LC-SC Multimode Duplex Fiber Optic Patch Cable for High-Speed Data Transmission

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

SC LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Multimode

Connector:

LC-SC

Color:

Green

Length:

3 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:
