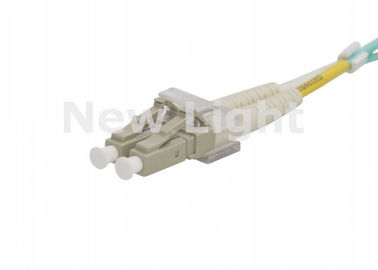

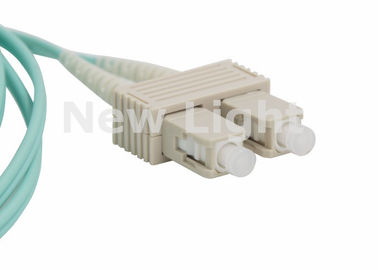

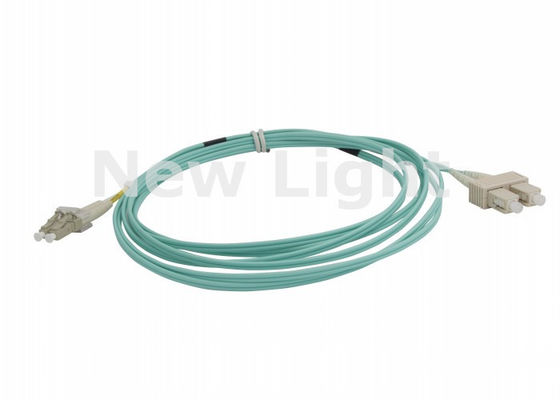

Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable

Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable

    • Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable
    • Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable
    • Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable
  • Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable

    Product Details:

    Place of Origin: China
    Brand Name: NewLight
    Certification: IS09001-2008.ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negoatiate
    Packaging Details: 1 pcs per pack
    Delivery Time: 3 to 5 working day
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Name: SC LC Fiber Patch Cord Diameter: 2.0mm
    Model: Multimode Connector: LC-SC
    Color: Green Length: 3 Meter

    LC-SC Multimodel 50/125 Duplex Optical fiber patch cord PC polish connector PVC Aqua cable







    Parameters:



    Conector type FC,SC,ST,LC,MU
    Single Mode Multimode
    Endface PC UPC APC PC
    Insert loss(dB) ≤0.30 ≤0.30
    Exchangeability(dB) ≤0.20 ≤0.20
    Repeatability(dB) ≤0.10
    Return loss(dB) ≥45 ≥50 ≥60 ≥35
    Core/Caldding diameter 9/125 50/125 or 625.5/125
    Durability >1000
    Operating temperature -25~+80 degree





    Description:



    The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.



    Provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.





    Specification:





    Connector LC to SC Jacket OD 2.0mm
    Fiber Mode 9/125µm Jacket Color Green
    Polish APC to APC Wavelength 1310/1550nm
    Fiber Type Duplex Jacket Material PVC
    Insertion loss ≤0.3dB Interchangeability ≤0.2dB
    Return loss ≥50dB Vibration ≤0.2dB
    Operating temperature -40~75℃ Storage temperature -45~85℃
    Polarity A(Tx) to B(Rx) Fiber Grade

    G652D



    Feature:



    * Good versatility and interchangeability

    * Stable and reliable connection and high repeatability

    * Low insertion loss,high return loss



    Application:



    * Optical fiber communication system

    * Optical fiber test equipment

    * Optical fiber access network

    * Optical fiber sensor

    * Optical fiber CATV system

    * Optical fiber data transmission

    * Local area network



    Standard:



    * Meet the requirement of IEC standards for fiber optic connectors

    * Meet the technical requirements of Telcordia GR-326





    Multimode Duplex Fiber Optic Cable , 3 Meter Length LC SC Fiber Patch Cable
