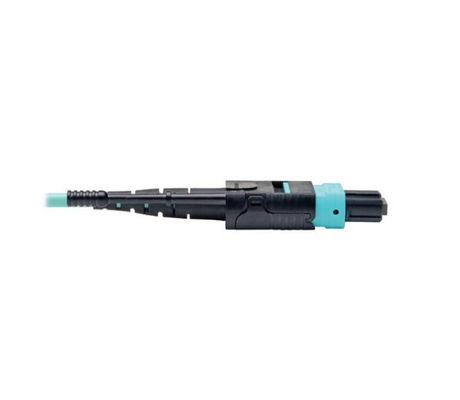

High-performance 12-core MPO/MTP trunk cable assemblies and patch cords designed for data center applications. Available in OM2, OM3, and OM4 multimode fiber configurations with green outer jacket.

Specifications

Fiber Optic Connectors: LC, ST, FC, SC, MTRJ, DIN, D4, E2000, MPO
Ferrule Interface: APC, PC, UPC
Fiber Cores: Simplex, Duplex
Fiber Types: Multimode (50/125), (62.5/125), Singlemode (9/125)
Cable Diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm
Custom Lengths Available

Key Features

MPO end face geometry compliant with EN50377-15-1
Polished end-face quality meets IEC61300-3-35 standards
Designed for 10 Gigabit Ethernet, Fiber Channel, and Infiniband applications
Compliant with data center standards EN50173-5 and ISO/IEC 24764
Available in Straight, Total Flipped, or Pair Flipped wire map configurations

MPO/MTP Performance Specifications

Type/Performance	Singlemode (APC polish)	Multimode (PC/Flat Polish)
Standard / Elite Low Loss	Standard / Elite Low Loss	Standard / Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB / ≤ 0.35dB	≤ 0.60dB / ≤ 0.35dB
Return Loss	≥ 50dB / N/A	N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	850nm

Technical Specifications

Connector Type	Testing Items	Min	Max
MTP PC	ROC_X(abs)(mm)	500	-
	ROC_Y(abs)(mm)	50	-
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	-0.2	0.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Fiber height(nm)	-300	300
MTP APC	ROC_X(abs)(mm)	1000	3000

Standards Compliance

IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics - Optical Internetworking Forum (OIF) Compliant
InfiniBand Compliant
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
QSFP Compliant

Contact for Inquiries: WHATSAPP +8613534063703

Tags:

mpo to mpo cable

mpo fiber cable

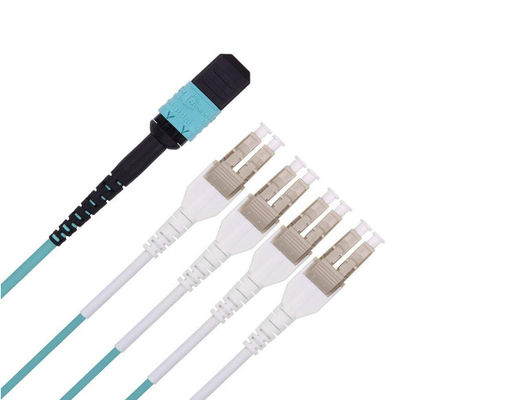

mpo fanout cable
