Parameter	Single Mode	Multimode
Connector fiber count	8, 12, 24 Core
Polish	PC, APC	PC
Color	Standard (Green), Elite (Yellow)	Standard (Beige), Elite (Aqua)
Insertion Loss - Standard	≤0.7dB	≤0.5dB
Insertion Loss - Elite Low Loss	≤0.3dB	≤0.3dB
Return Loss	PC≥50dB, APC≥60dB	≥30dB
Durability (500 Mating)	≤0.2dB
Test Wavelength	1310/1550nm	850/1310nm

Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable

Products Details

Home > Products >

MPO MTP Cable

12 Core Single Mode MPO MTP Cable Factory Terminated for High Density Data Networks

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

12 Core Single Mode MPO MTP Cable Factory Terminated for High Density Data Networks

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

Color:

Different Color

Name:

MPO TO LC Patch Cable

Connector:

MPO To LC

Mode:

Single Mode

Core:

12 Cores

OEM:

Available

Minimum Order Quantity:

1~10000

Price:

6~15

Packaging Details:

1 piece per pack

Delivery Time:

within 2 weeks

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

1000 pcs per month

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

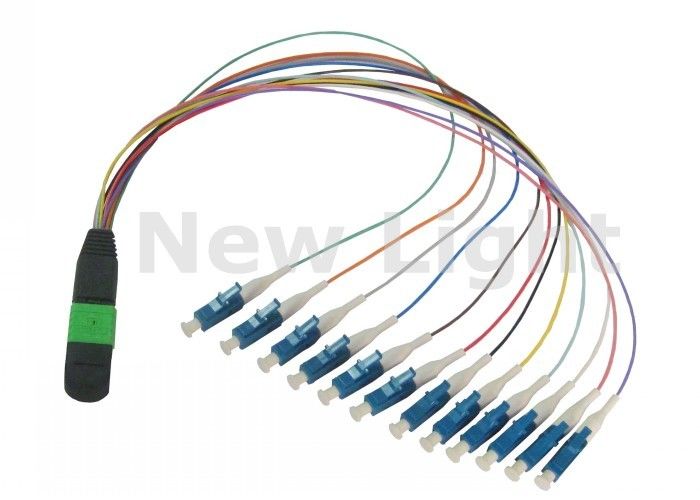

MPO/MTP-LC 12 Core Fiber Optic Patch Cord

Applications

Data communication networks, optical system access networks, storage area networking fiber channel, and high density architectures.

Key Features

Utilizes MPO/MTP connectors for high-density applications
Rapid deployment capability
Factory terminated for reliability
100% tested with supplied test data
High density cable design
Optimized performance for critical applications
Compliant with directive 2002/95/EC (ROHS) and REACH SVHC
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5 standards

Technical Specifications

Parameter	Single Mode	Multimode
Connector fiber count	8, 12, 24 Core
Polish	PC, APC	PC
Color	Standard (Green), Elite (Yellow)	Standard (Beige), Elite (Aqua)
Insertion Loss - Standard	≤0.7dB	≤0.5dB
Insertion Loss - Elite Low Loss	≤0.3dB	≤0.3dB
Return Loss	PC≥50dB, APC≥60dB	≥30dB
Durability (500 Mating)	≤0.2dB
Test Wavelength	1310/1550nm	850/1310nm
