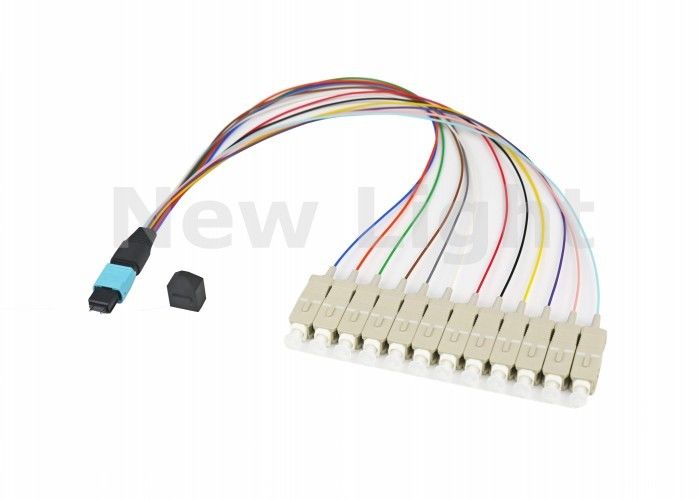

Multimode OM3 MPO MTP Cable 12 Cores / 24 Cores for Storage Area Networking Fiber Channel

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Different Color

Name:

MPO Fiber Cable / MPO Patch Cord

Connector:

MPO-SC

Mode:

Multimode

Length:

1 Meter

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

Multi Mode OM3 MPO MTP Cable - 12 Cores / 24 Cores

High-performance multi-mode OM3 MPO MTP cables designed specifically for Storage Area Networking Fiber Channel applications. These cables provide reliable connectivity for demanding data center environments.

Quick Specifications

Model Number: MTP/MPO-SC

Fiber Type: Multimode OM3

Cable Type: Flat fiber

Connector Type: High connectivity MPO

Insertion Loss: ≤ 0.5dB OM3 / ≤ 0.6dB SM OS2

Return Loss: ≥ 25dB OM3; ≥ 35dB

Standards Compliance

Jacketed cable compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5

Applications

Storage area networking fiber channel
Parallel optics
Infiniband

Connector Performance Specifications

Connector A

Specification	Value
Connector Type	12 or 24-Fiber MPO
Polish	PC(MM); APC(SM)
Housing Colour	MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical	≤ 0.10 dB
Insertion loss, max.	≤ 0.35 dB
Durability (500 Matings)	< 0.2dB

Connector B

Specification	Value
Connector Type	LC SC FC
Polish	UPC/APC
Housing Colour	OM2 (Beige), OM3,OM4 (Aqua), SM (Green)
Insertion Loss, Typical	≤ 0.10 dB
Insertion loss, max.	≤ 0.35 dB
Durability (1000 Matings)	< 0.2dB

Fiber Cable Performance Specifications

Specification	Value
Fiber Count	12 Fiber, 24 Fiber
Outer diameter	12 Fiber: 3.1 ± 0.1mm; 24 Fiber: 3.8 ± 0.1mm
Outer jacket colour	OS2 (Yellow), OM2 (Orange), OM3 (Aqua), OM4 (Purple)
Outer jacket material	LSZH, OFNP, OFNR
Tensile strength	12 Fiber: 250N; 24 Fiber: 300N
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +70°C

Contact Us: WHATSAPP +8613534063703
