Type/Performance	Singlemode (APC Polish)		Multimode (PC / Flat Polish)
	Standard	Elite Low Loss	Standard	Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB	N/A	N/A	N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	1310nm	850nm	850nm

Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable

Products Details

Home > Products >

MPO MTP Cable

24 Core MPO MTP Cable APC <0.3dB Single Mode Fiber Optic Patch Cord

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

24 Core MPO MTP Cable APC <0.3dB Single Mode Fiber Optic Patch Cord

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

Name:

MPO/ MTP Patch Cord

Color:

Green

Core:

24 Core / 12 Core

Mode:

Single Mode

Polish:

APC

OEM:

Available

Minimum Order Quantity:

1~10000

Price:

6~15

Packaging Details:

1 piece per pack

Delivery Time:

within 2 weeks

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

1000 pcs per month

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

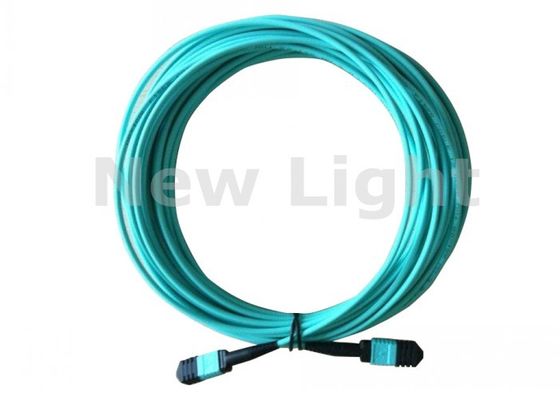

24 Core / 12 Core MPO MTP Cable APC <0.3dB Green Single Mode Fiber Jumpers

High-performance 12-fiber MPO to MPO patch cable jumpers with APC connectors and ultra-low insertion loss of <0.3dB.

Product Specifications

Place of Origin: Guangdong, China (Mainland)

Brand Name: DYS/OEM

Model Number: MTP/MPO patch cord/Jumper

Mode: Single Mode (SM), Multimode (MM)

Fiber Core: 12-core or 24-core

Return Loss: UPC >55dB, APC >65dB

Certifications: RoHS; ISO:9001, UL

Connector Type: MTP, MPO

Insertion Loss: UPC < 0.2dB, APC <0.3dB

WHATSAPP +8613534063703

MTP/MPO Termination Performance Specifications

Type/Performance	Singlemode (APC Polish)		Multimode (PC / Flat Polish)
	Standard	Elite Low Loss	Standard	Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB	N/A	N/A	N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	1310nm	850nm	850nm
