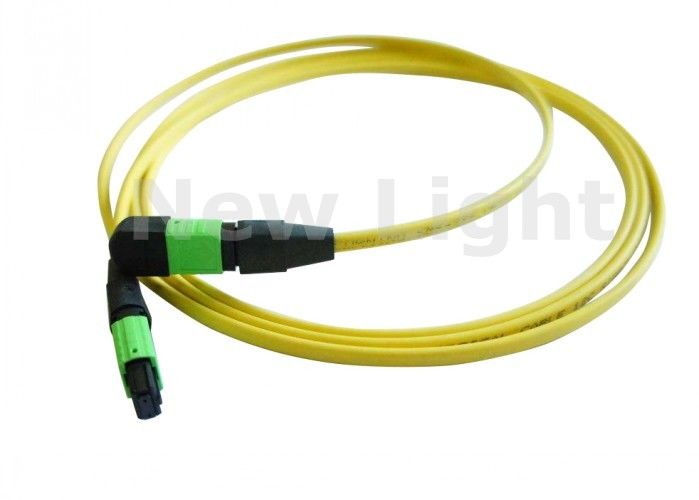

Single Mode 12 Core MPO MTP Cable with APC Polish CE Approved MTP Trunk Cable

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Yellow

Name:

MPO/MTP Trunk Cable

Connector:

MPO-MPO

Length:

2 Meter

Mode:

Singlemode

Polish:

APC

Supply Ability:

1000 pcs per month

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

Single Mode 12 Core MPO MTP Cable / MTP Trunk Cable With APC Polish CE Approved

Product Overview

12-core MPO/MTP Trunk Cable Assemblies and MPO/MTP patch cords with APC polish, designed for high-performance single-mode fiber applications.

Product Specifications

Model Type: MPO
Fiber Type: Single Mode
Insertion Loss: <0.6dB
Fiber Length: 1M, 2M, 3M, 5M or customized lengths

Key Features

Connector End Face: MPO end face geometry requirements: EN50377-15-1
Polishing Quality: Polished end-face quality: IEC61300-3-35
Available in female-to-female, male-to-male, and male-to-female configurations
Male versions equipped with MTP pins
Available in 12, 24, and 48 fiber MTP connector variations
Designed for data center solutions supporting 10 Gigabit Ethernet, Fiber Channel, and Infiniband
Compliant with data center standards EN50173-5 and ISO/IEC 24764

MPO Cable Details

MPO patch cables are used for interconnections between MPO cassettes or connections to active equipment with MPO/MTP interfaces. When connecting through an MPO coupler, one connector must be male (equipped with pins). Available in three wire map configurations: Straight, Total Flipped, or Pair Flipped.

Performance Specifications

Type/Performance	Singlemode (APC Polish)	Multimode (PC/Flat Polish)
Maximum Insertion Loss	≤ 0.75dB (Standard) ≤ 0.35dB (Elite Low Loss)	≤ 0.60dB (Standard) ≤ 0.35dB (Elite Low Loss)
Return Loss	≥ 50dB	N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	850nm

Contact Us: WHATSAPP +8613534063703
