Parameter	Unit	Premium	A	B
Operating Wavelength	nm	1310±20, 1550±20 /1310±40, 1550±40 or Others
Excess Loss	dB	0.1 (Typ.)	-	-
Polarization Stability	Max dB	0.1	0.1	0.15
Uniformity (50:50)	Max dB	0.6	0.8	1.0
Thermal Stability	Max dB	0.2	0.3	0.4
Directivity	Min dB	50 (1x2), 60 (2x2)
Reflectance	Min dB	50 (1x2), 60 (2x2)
Operating Temperature	°C	-30 ~ 85
Storage Temperature	°C	-40 ~ 85
Insertion Loss 50/50	Max dB	3.3/3.3	3.4/3.4	3.6/3.6
Insertion Loss 45/55	Max dB	3.8/2.9	3.9/3.0	4.0/3.1
Insertion Loss 40/60	Max dB	4.3/2.5	4.4/2.6	4.6/2.7
Insertion Loss 35/65	Max dB	4.9/2.1	5.0/2.2	5.2/2.3
Insertion Loss 30/70	Max dB	5.6/1.8	5.7/1.85	5.9/1.9
Insertion Loss 25/75	Max dB	6.4/1.45	6.5/1.55	6.7/1.6
Insertion Loss 20/80	Max dB	7.4/1.15	7.5/1.2	7.7/1.3
Insertion Loss 15/85	Max dB	8.7/0.9	8.8/0.95	9.0/1.0
Insertion Loss 10/90	Max dB	10.5/0.6	10.6/0.7	10.8/0.8
Insertion Loss 5/95	Max dB	13.7/0.35	13.8/0.4	14.0/0.5
Insertion Loss 1/99	Max dB	21.0/0.15	21.3/0.2	21.6/0.25

Tags:

single mode fiber splitter

fiber optic cable splitter

fiber optic plc splitter

Products Details

Home > Products >

Fiber Optic Splitter

1×16 Fiber Optic PLC Splitter with SC/UPC Connectors and Single Mode for High Reliability

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

1×16 Fiber Optic PLC Splitter with SC/UPC Connectors and Single Mode for High Reliability

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Color:

Yellow Cable,green Connector

Connector Type:

Polish:

UPC

Spliter:

PLC

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union,T/T,MoneyGram

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

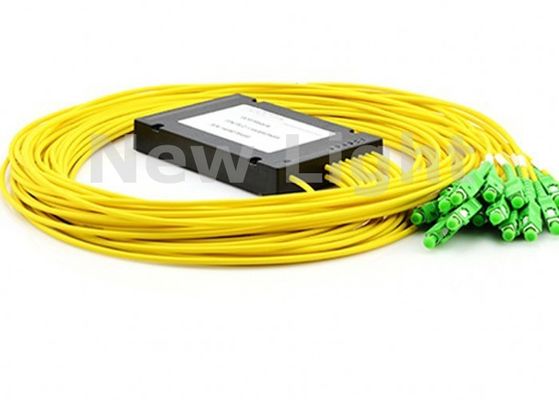

1*16 Fiber Optic PLC Splitter, Single Mode Fiber Splitter With SC/UPC Connectors

1*16 Optical PLC Splitter single mode cable with SC/UPC connectors designed for high-performance fiber optic networks.

Applications

Fiber To The Home (FTTH)
Passive Optical Networks (PON / GPON / EPON)
CATV Network (Cable Television Network) Communication Systems
Fiber Optic Test Equipment
Fiber Optic Sensing
Local Area Networks (LAN)
Excellent Environmental Performance

Key Features

All fiber construction
High reliability
Outstanding optical performance
Different fiber types available

Performance Specifications

Parameter	Unit	Premium	A	B
Operating Wavelength	nm	1310±20, 1550±20 /1310±40, 1550±40 or Others
Excess Loss	dB	0.1 (Typ.)	-	-
Polarization Stability	Max dB	0.1	0.1	0.15
Uniformity (50:50)	Max dB	0.6	0.8	1.0
Thermal Stability	Max dB	0.2	0.3	0.4
Directivity	Min dB	50 (1x2), 60 (2x2)
Reflectance	Min dB	50 (1x2), 60 (2x2)
Operating Temperature	°C	-30 ~ 85
Storage Temperature	°C	-40 ~ 85
Insertion Loss 50/50	Max dB	3.3/3.3	3.4/3.4	3.6/3.6
Insertion Loss 45/55	Max dB	3.8/2.9	3.9/3.0	4.0/3.1
Insertion Loss 40/60	Max dB	4.3/2.5	4.4/2.6	4.6/2.7
Insertion Loss 35/65	Max dB	4.9/2.1	5.0/2.2	5.2/2.3
Insertion Loss 30/70	Max dB	5.6/1.8	5.7/1.85	5.9/1.9
Insertion Loss 25/75	Max dB	6.4/1.45	6.5/1.55	6.7/1.6
Insertion Loss 20/80	Max dB	7.4/1.15	7.5/1.2	7.7/1.3
Insertion Loss 15/85	Max dB	8.7/0.9	8.8/0.95	9.0/1.0
Insertion Loss 10/90	Max dB	10.5/0.6	10.6/0.7	10.8/0.8
Insertion Loss 5/95	Max dB	13.7/0.35	13.8/0.4	14.0/0.5
Insertion Loss 1/99	Max dB	21.0/0.15	21.3/0.2	21.6/0.25
