Parameters	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)	1260-1650nm
Insertion loss (dB)	7.4	10.7	13.7	16.9	21
Loss Uniformity	0.6	0.8	1.2	1.7	2.5
Return loss (dB)	50	50	50	50	50
PDL (dB)	0.2	0.3	0.3	0.3	0.4
Wavelength dependent loss (dB)	1	1	1	1	1
Temperature stability(-40~85)(dB)	0.6	0.6	0.8	1	1

Pigtail Length: 1.2m or customer specified
Operating Temperature: -40~85°C
Storage Temperature: -40~85°C

Tags:

single mode fiber splitter

fiber optic cable splitter

fiber optic plc splitter

Products Details

Home > Products >

Fiber Optic Splitter

PLC Fiber Optic Splitter Module 1 X 4 SC APC Connector 0.9mm Diameter Single Mode for CATV and Data Communication

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

PLC Fiber Optic Splitter Module 1 X 4 SC APC Connector 0.9mm Diameter Single Mode for CATV and Data Communication

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Color:

Single Mode Fiber Splitter

Connector Type:

Polish:

APC

Cable Diameter:

0.9mm

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union,T/T,MoneyGram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

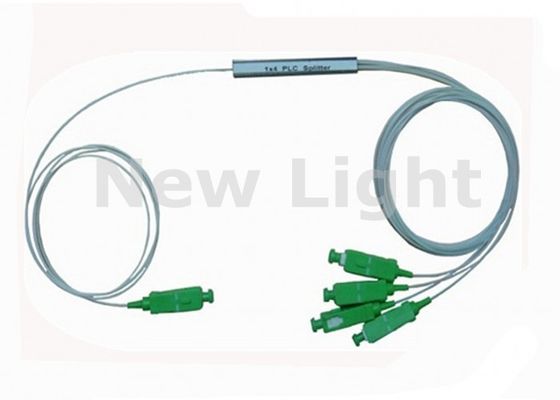

PLC Fiber Optic Splitter Module 1 X 4 SC APC Connector 0.9mm Diameter For CATV

PLC Optical Splitter Mini Module Type Fiber Optic Splitter 1X4 SC APC Connector 0.9mm 1m

Key Features

Low Insertion Loss
Broadband Operation
Excellent Uniformity
Low Polarization Dependent Loss
Low excess loss & High performance
Good uniformity & Low PDL

Applications

CATV
Data Communication
Fiber Optic Equipment & Systems
PON System

Technical Specifications

Parameters	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)	1260-1650nm
Insertion loss (dB)	7.4	10.7	13.7	16.9	21
Loss Uniformity	0.6	0.8	1.2	1.7	2.5
Return loss (dB)	50	50	50	50	50
PDL (dB)	0.2	0.3	0.3	0.3	0.4
Wavelength dependent loss (dB)	1	1	1	1	1
Temperature stability(-40~85)(dB)	0.6	0.6	0.8	1	1

Pigtail Length: 1.2m or customer specified
Operating Temperature: -40~85°C
Storage Temperature: -40~85°C

Tags:
