1x4 Single Mode PLC Fiber Optic Splitter with LC UPC Connector for FTTH Applications

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Color:

Yellow Cable ,Blue Connector

Connector Type:

Polish:

UPC

Cable Diameter:

2.0mm

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union,T/T,MoneyGram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

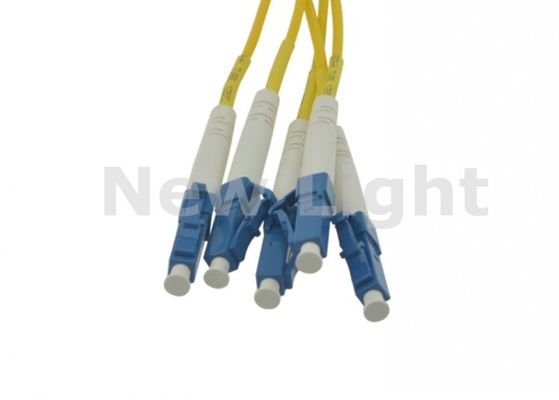

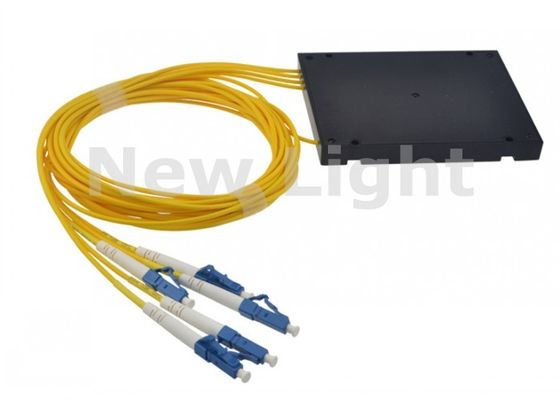

FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector

LC UPC 1x4 PLC Fiber optical splitter single mode with LC UPC connector FTTH ABS optic splitter box

Applications

Fiber Optic CATV
Fiber to Home (FTTH)
Passive Optical Networks
Fiber Communication Systems
Local Area Networks (LAN)

Technical Specifications

Parameters	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260-1650
Insertion Loss (dB) Max(S/P)	7.4/7.2	10.7/10.5	13.7/13.5	16.9/16.5	21
Loss Uniformity (dB) Max	0.6	0.8	1.2	1.7	2.5
Return Loss (dB) Min(S/P)	50/55	50/55	50/55	50/55	50
PDL (dB) Max	0.2	0.3	0.3	0.3	0.4
Directivity (dB) Min	55	55	55	55	55
Wavelength Dependent Loss (dB)	1	1	1	1	1
Temperature Stability (-40~85 ℃)(dB)	0.6	0.6	0.8	1	1
Operating Temperature (℃)	-20~75
Storage Temperature (℃)	-40~85

Pigtail Length: 1.2(±0.1) meters or customer specified
Fiber Type: SMF-28e or customer specified

Packaging Size (L x W x H) (mm)
1x4: 40x4x4 \| 1x8: 40x4x4 \| 1x16: 40x4x4 \| 1x32: 50x7x4 \| 1x64: 60x12x4
