Product Details:
|
| Color: | Yellow Cable ,Blue Connector | Connector Type: | LC |
|---|---|---|---|
| Polish: | UPC | Cable Diameter: | 2.0mm |
| Mode: | Single Mode | OEM: | Available |
| Highlight: | fiber optic plc splitter,fiber optic cable splitter |
||

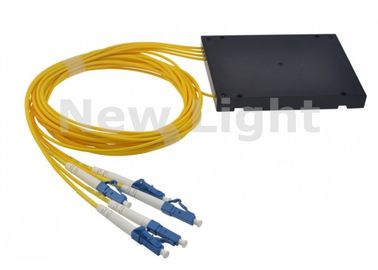

LC UPC 1x4 PLC Fiber optical splitter single mode with LC UPC connector FTTH ABS optic splitter box
Application:
Fiber Optic CATV; Fiber to home (FTTH); Passive Optical Networks; Fiber communication systems;
Local Areal Networks (LAN)
Specification:
| Parameters | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(nm) | 1260-1650 | |||||
| Insertion Loss (dB) | Max(S/P) | 7.4/7.2 | 10.7/10.5 | 13.7/13.5 | 16.9/16.5 | 21 |
| Loss Uniformity (dB) | Max | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 |
| Return Loss (dB) | Min(S/P) | 50/55 | 50/55 | 50/55 | 50/55 | 50 |
| PDL (dB) | Max | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 |
| Pigtail Length(m) | 1.2(±0.1) or customer specified | |||||
| Fiber Type | SMF -28e or customer specified | |||||
| Wavelength Dependent Loss(dB) | 1 | 1 | 1 | 1 | 1 | |
| Temperature Stability | 0.6 | 0.6 | 0.8 | 1 | 1 | |
| (-40~85 ℃)(dB) | ||||||
| Operating Temperature( ℃) | -20~75 | |||||
| Storage Temperature( ℃) | -40~85 | |||||
| Packaging Size(L x W x H)(mm) | 40x4x4 | 40x4x4 | 40x4x4 | 50x7x4 |
60x12x4 |
|
