FTTH Termination Box

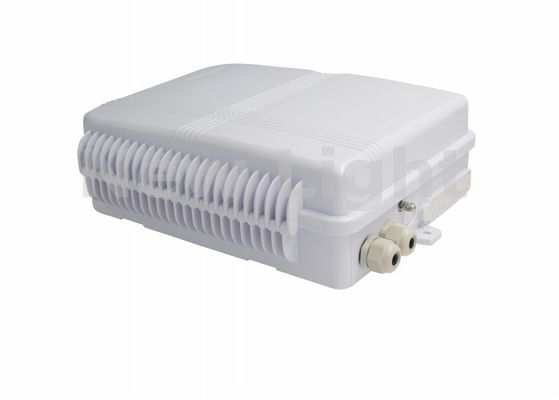

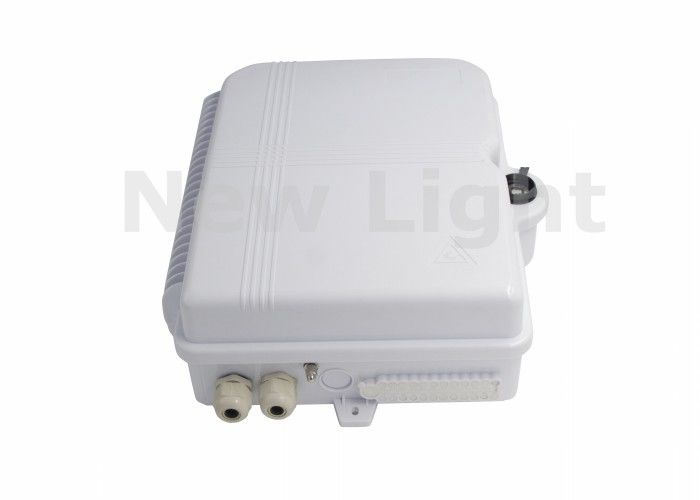

White 48 Port Wall Mountable Fiber Optic Termination Box with IP65 Protection for FTTH Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

White 48 Port Wall Mountable Fiber Optic Termination Box with IP65 Protection for FTTH Networks

Brand Name:	New Light
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Core:

Name:

Splitter Box

OEM:

Avalaible

Supply Ability:

1000 pcs per month

Highlight:

fiber optic termination box

wall mount fiber termination box

Product Description

White Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area

Fiber Optic Terminal Box SC 48 Port Wall Box For Local Area - White Color

The fiber optic drop cable terminal box serves as a termination point for connecting feeder cables with drop cables. This enclosure facilitates fiber splicing, splitting, and distribution while providing robust protection and management for FTTX network infrastructure. Suitable for both indoor and outdoor applications.

Key Features

Standard dimensions with lightweight construction and rational design
Constructed from ABS material with waterproof, dustproof, and anti-aging properties (IP65 protection rating)
Integrated clamping system for feeder and drop cables
Separate routing paths for pigtails and patch cords to prevent interference
Flip-up distribution panel with cup-joint feeder cable placement for easy maintenance and installation
Wall-mounted installation suitable for indoor and outdoor environments
Compatible with SC, FC, ST, and LC adapters

Applications

Telecommunications subscriber loop systems
Fiber to the Home (FTTH) deployments
Local Area Networks (LAN) and Wide Area Networks (WAN)
CATV distribution systems

Technical Parameters

Maximum Capacity	48 Fiber (2 x 24FO trays)
Dimensions	380 x 355.8 x 140.5 mm
Splitter Compatibility	Accepts 1 x 1*32 ABS box type splitter (Alternative configuration: Remove splitter space to accommodate 3 splice trays for 72 fiber splicing capacity)

Contact via WhatsApp: 008613534063703
