Waterproofing layer between the steel tape and cable core
Double coated PE corrugated steel tape under PE sheath
Parallel double steel wires as strengthen member

Performance Properties

Waterproofing layer provides strong water-resistance performance
Steel tape with PE outer sheath and metallic strengthen member enhances anti-crush and tensile properties

Product Introduction

Single-mode cable: yellow; multi-mode cable: orange; options available for other colors, LSZH or flame-retardant materials upon request

Key Features

High strength aramid yarn strength member ensures high tensile strength and long-term stability in transmission
Small outer diameter, lightweight, flame-retardant, easy to strip, low attenuation, physically soft
Direct splicing between tight buffer cables requires no tie-in box or pigtail
Suitable for installation, operation, and convenient for maintenance

Applications

Building-to-building connecting cable
Indoor soft cable along walls, ceilings, between layers and in conduits
Pigtails, movable connectors and patch cords for communication equipment

Technical Specifications

Parameter	Value
Fiber count	1
Outer diameter (mm)	1.6 \| 1.8 \| 2 \| 2.4 \| 3.0
Nominal weight (kg/km)	2.9 \| 3.2 \| 3.5 \| 5 \| 6.8
Max. tensile strength (N) - Short-term	80 \| 80 \| 100 \| 100 \| 150
Max. tensile strength (N) - Long-term	40 \| 40 \| 60 \| 60 \| 80
Min. bending radius (mm) - Dynamic	20D
Min. bending radius (mm) - Static	10D
Max. crush resistance (N/100mm²)	500

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

Indoor Single Mode Simplex Fiber Optic Cable with 3mm Diameter and Waterproof Design for Patch Cord Applications

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

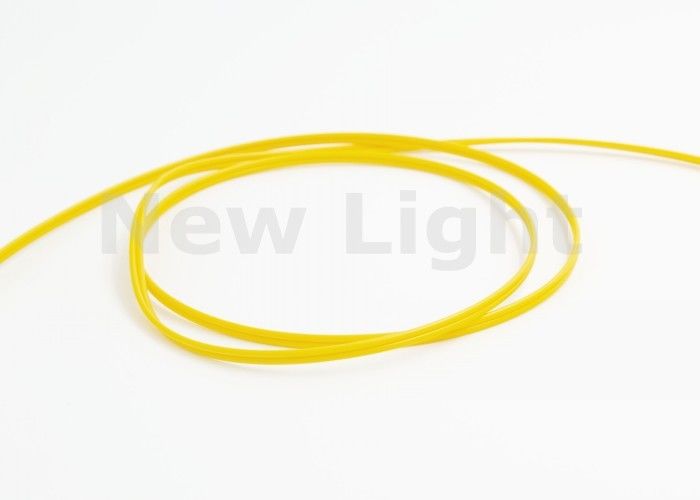

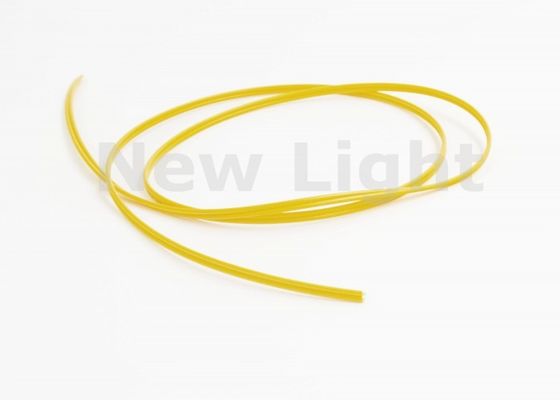

Indoor Single Mode Simplex Fiber Optic Cable with 3mm Diameter and Waterproof Design for Patch Cord Applications

Brand Name:	New Light
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Name:

Indoor Fiber Optic Cable

Fiber Type:

Duplex

Color:

Yellow

Outer Diameter:

3.0mm

Material:

PVC

OEM:

Available

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

simplex fiber optic cable
