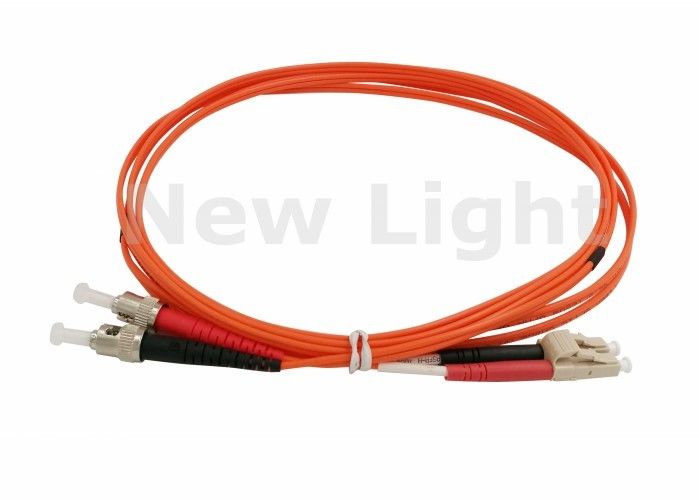

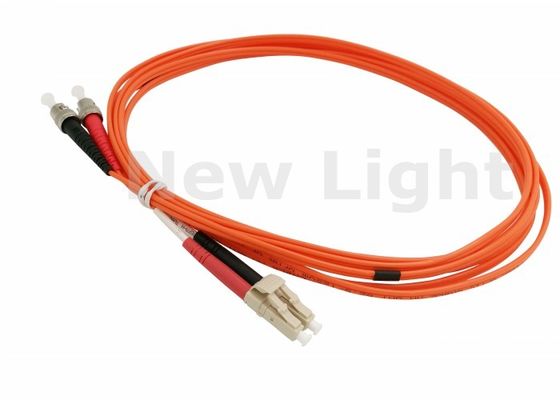

Orange LC-ST Duplex Fiber Optic Patch Cord with 3 Meter Length for High-Speed Data Transmission

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC -ST Fiber Patch Cord

Diameter:

2.0mm

Model:

Multimode

Connector:

LC-ST

Color:

Orange

Length:

3 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

Orange LC FC 9/125 Single Mode Duplex Fiber Optic Cable With UPC Polish Connector

Orange LC-ST 50/125 Multimode Duplex Optical Fiber Patch Cord featuring PVC orange cable with UPC polish connector for reliable data transmission.

Applications

CATV Systems
Optical Fiber Communication Systems
Optical Fiber Data Transmission
Building Network Access
Cabling Systems & ODF
FTTX Applications

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
Insertion Loss	dB	≤0.2 (PC/UPC)	≤0.2 (PC)	≤0.2 (PC)	≤0.2 (PC)
Insertion Loss	dB	≤0.3 (APC)	≤0.3 (UPC)	≤0.3 (UPC)	≤0.3 (APC)
Return Loss	dB	≥50 (PC)	≥30 (PC)	≥30 (PC)	≥35 (PC)
Return Loss	dB	≥60 (APC)	≥45 (UPC)	≥45 (UPC)	≥75 (APC)
Wavelength	nm	1310, 1510
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating Temperature	℃	-40~75
Storage Temperature	℃	-45~85
Cable Diameter	mm	φ3.0, φ2.0, φ0.9

Product Characteristics

Connector Types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified
