Single Mode LC-LC Fiber Jumper Cable with 2.0mm Diameter and UPC Polish for High-Speed Data Transmission

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC LC Fiber Patch Cord

Diameter:

2.0mm

Fiber Type:

Duplex

Connector:

LC-LC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

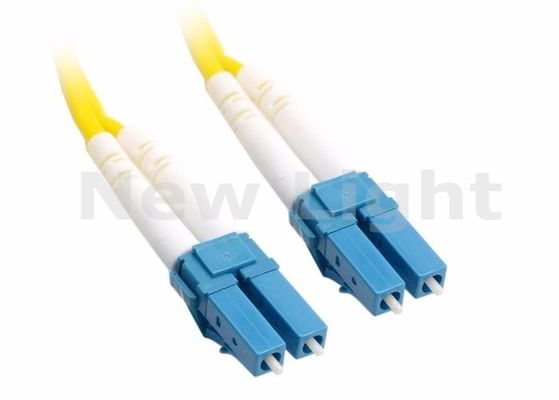

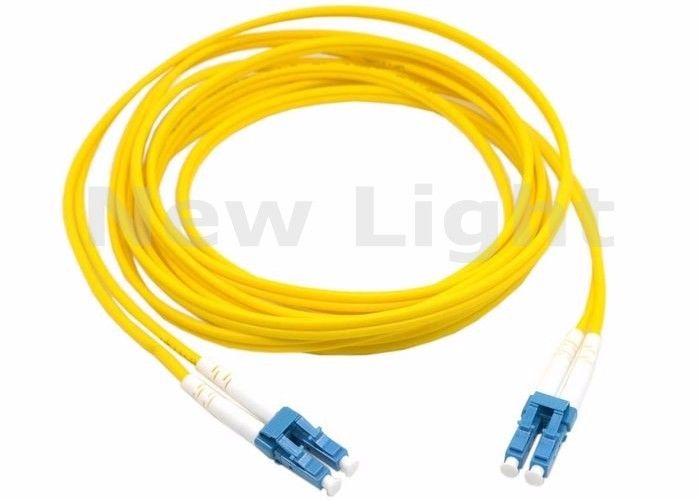

SM Duplex Fiber Optic Jumper Cables

Dual LC to LC Fiber Patch Cord Jumper Cable Single Mode Optic for Network Applications

Product Overview

Length Options: 3m, 5m, 10m, 20m
Connectors: LC to LC
Core: Single Mode Fiber
Density: Duplex
Finish/Size: PC Polish

Mechanical Performance

Interchangeability: ≤ 0.1 dB
Vibration: ≤ 0.1 dB (5 to 50Hz, 1.5mm)
Tensile strength: ≤ 0.1 dB (0 to 15Kg pull)
High temperature: ≤ 0.2 dB (+85°C for 50 hours)
Low temperature: ≤ 0.2 dB (-40°C for 50 hours)
Temperature cycling: ≤ 0.2 dB (-40°C to 85°C, 5 cycles)
Humidity: ≤ 0.2 dB (-25°C ~ 65°C, 93%)

Applications

Signal transmission and data transmission
Telecommunications networks, local area networks (LAN), metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Optical fiber CATV (cable television)
Fiber optic sensors
Fiber-optic broadband and FTTH (fiber to the home)
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector	LC to LC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~70℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and reliability
Superior interchangeability
High temperature stability
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Customization Options

Connector types: SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish options: UPC, APC, PC
Cable types: Simplex, Duplex straight, Duplex Reverse
Fiber types: SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable jacket: Riser, Plenum, LSZH
Cable diameter: 3.0mm, 2.0mm, 0.9mm, etc.
Cable length: Custom lengths available
