3 Meter SC to SC Fiber Patch Cord Simplex Single Mode Fiber Jumper for Network

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC SC Fiber Patch Cord

Diameter:

2.0mm

Fiber Type:

Simplex

Connector:

SC-SC

Color:

Yellow

Length:

3 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

single mode fiber jumpers

Product Description

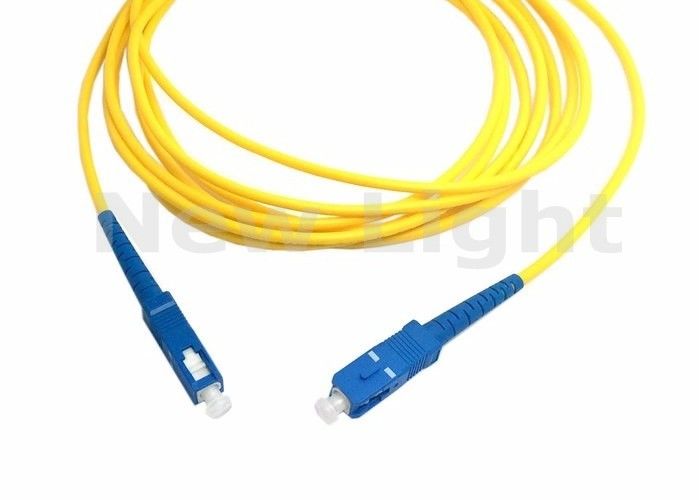

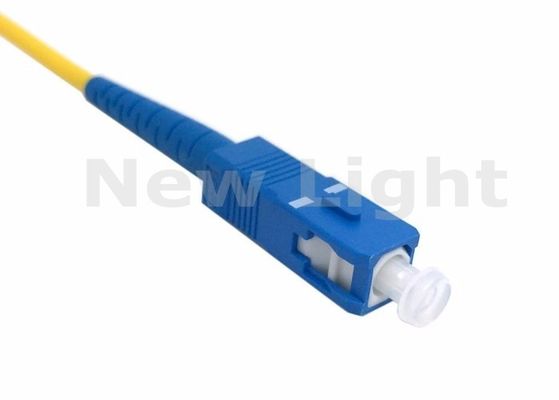

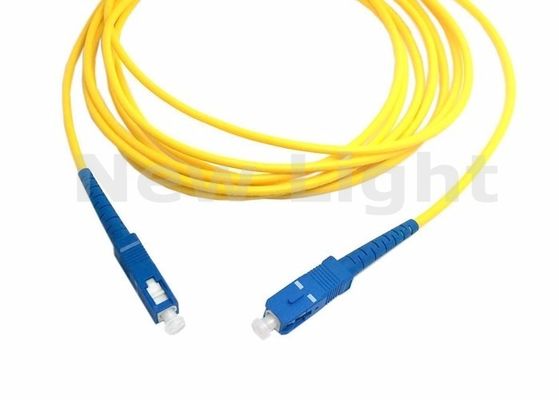

3 Meter SC to SC Fiber Patch Cord

Simplex Single Mode Fiber Jumpers for Network Applications

Product Overview

SC to SC Fiber Patch Cord Jumper Cable SM Simplex Single Mode Optic for Network - 3 meters length. High-performance fiber optic patch cord designed for reliable signal and data transmission in various networking environments.

Mechanical Properties

Interchangeability: ≤ 0.1 dB

Vibration: ≤ 0.1 dB (5 to 50Hz, 1.5mm)

Tensile Strength: ≤ 0.1 dB (0 to 15Kg pull)

High Temperature: ≤ 0.2 dB (+85°C for 50 hours)

Low Temperature: ≤ 0.2 dB (-40°C for 50 hours)

Temperature Cycling: ≤ 0.2 dB (-40°C to 85°C, 5 cycles)

Humidity: ≤ 0.2 dB (-25°C ~ 65°C, 93%)

Configuration Details

Connectors: SC to SC

Core: Single Mode Fiber

Density: Simplex

Polish: PC Polish

Applications

Signal transmission and data transmission
Telecommunications network systems
Local area network (LAN) infrastructure
Metropolitan area networks
Optical fiber communication systems
Fiber optic test equipment and instrumentation
Optical fiber CATV (cable television)
Fiber optic sensors
Fiber-optic broadband and FTTH (fiber to the home)
Fiber optic patch panels and wiring units

Technical Specifications

Connector	SC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	PC to PC	Wavelength	1310/1550nm
Fiber Type	Simplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40~70℃	Storage Temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and reliability
Superior interchangeability performance
High temperature stability
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Ordering Options

Parameter	Available Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable Type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters
