Connector	LC to LC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Orange
Polish	PC to PC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 70°C	Storage Temperature	-45°C to 85°C
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and long service life
Superior interchangeability performance
High temperature stability
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Ordering Options

Parameter	Available Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable Type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

Orange 2.0mm Diameter Multimode LC LC Duplex Fiber Optic Patch Cable for Network

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

Orange 2.0mm Diameter Multimode LC LC Duplex Fiber Optic Patch Cable for Network

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC LC Fiber Patch Cord

Diameter:

2.0mm

Fiber Type:

Multi Mode

Connector:

LC-LC

Color:

Orange

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

fiber optic pigtail

single mode fiber jumpers

Product Description

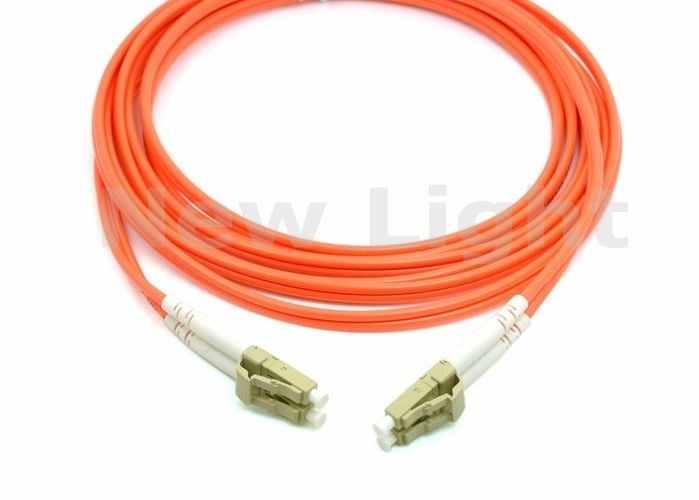

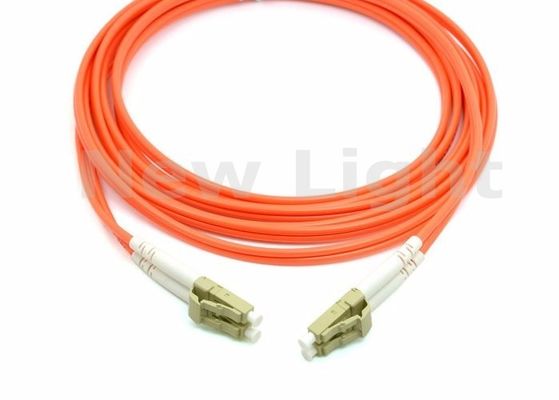

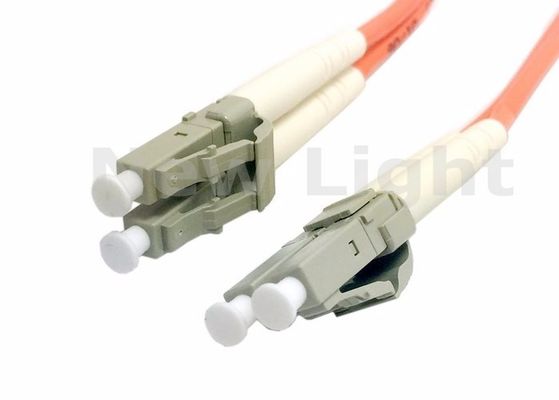

Orange Dual LC to LC Multimode Fiber Optic Cable

High-performance duplex multimode fiber optic patch cord designed for reliable network connectivity and data transmission applications.

Applications

Signal and data transmission systems
Telecommunications networks and LAN/MAN infrastructure
Fiber optic test equipment and instrumentation
Cable television (CATV) and fiber optic sensors
FTTH (Fiber to the Home) broadband solutions
Patch panels and rack/wall mount fiber optic units

Mechanical Performance

Interchangeability: ≤ 0.1 dB
Vibration resistance: ≤ 0.1 dB (5-50Hz, 1.5mm)
Tensile strength: ≤ 0.1 dB (0-15Kg pull)
High temperature stability: ≤ 0.2 dB (+85°C for 50 hours)
Low temperature performance: ≤ 0.2 dB (-40°C for 50 hours)
Temperature cycling: ≤ 0.2 dB (-40°C to 85°C, 5 cycles)
Humidity resistance: ≤ 0.2 dB (-25°C to 65°C, 93%)

Configuration Details

Connectors: LC to LC
Core: Multimode Fiber
Density: Duplex
Finish: PC Polish

Technical Specifications

Connector	LC to LC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Orange
Polish	PC to PC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 70°C	Storage Temperature	-45°C to 85°C
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and long service life
Superior interchangeability performance
High temperature stability
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Ordering Options

Parameter	Available Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable Type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters
