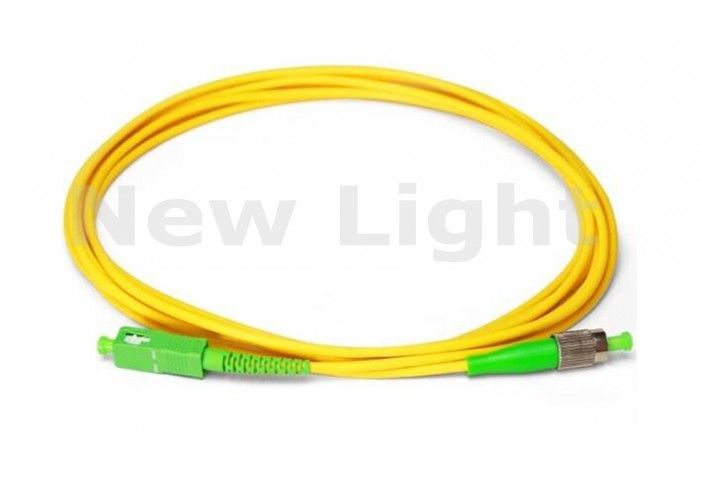

3M SC-FC Fiber Optic Patch Cord 2.0mm Diameter Low Insertion Loss Jumper Cable for FTTH Applications

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

SC-FC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

SC-FC

Color:

Yellow

Length:

3 Meters

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

3M Fiber Optic Jumper Cables

3M SC-FC APC Simplex single-mode fiber optic patch cord cable with 2.0mm and 3.0mm diameters for FTTH applications.

Product Packaging

Inner Packing	1 piece per plastic bag
Minimum Order	100 pcs
100 pcs Gross Weight	2-3kg
Outer Packing	Carton box

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Applications

Telecommunication networks
Video transmission systems
Gigabit Ethernet
Active device termination
Multimedia applications
Premise installations
FTTH TTX applications
Local area networks
CATV systems

Technical Specifications

Model Number	Fiber Optic Patch Cord
Connector Styles	LC, SC, ST, FC, MU, MPO, SC/APC, FC/APC, LC/APC, MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male
Fiber Types	9/125 SMF-28 (Singlemode) OS1, 50/125, 62.5/125 (Multimode) OM2 & OM1, 50/125 10G (Multimode) OM3
Cable Types	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm PVC or LSZH, Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Types	UPC, SPC, APC (8° & 6°)
Insertion Loss	≤ 0.1dB (Singlemode Master), ≤ 0.25dB (Singlemode Standard), ≤ 0.25dB (Multimode)
Return Loss (Singlemode)	UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ. 65dB)
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C

Product Parameters

Connector: SC to FC

Jacket OD: 2.0mm

Fiber Mode: 9/125µm

Jacket Color: Yellow

Polish: UPC to UPC

Wavelength: 1310/1550nm

Fiber Type: Simplex

Jacket Material: PVC

Insertion Loss: ≤0.3dB

Interchangeability: ≤0.2dB

Return Loss: ≥50dB

Vibration: ≤0.2dB

Operating Temperature: -40~75℃

Storage Temperature: -45~85℃

Polarity: A(Tx) to B(Rx)

Fiber Grade: G652D

Product Overview

Fiber optic patch cords are essential components of optical networks. These cables feature various connector types installed on fiber optic cable ends. Our comprehensive patch cord series offers multiple lengths and connector options to meet diverse application requirements.
