Interchangeability	≤ 0.1 dB
Vibration (5 to 50Hz, 1.5mm)	≤ 0.1 dB
Tensile Strength (0 to 15Kg pull)	≤ 0.1 dB
High Temperature (+85°C for 50 hours)	≤ 0.2 dB
Low Temperature (-40°C for 50 hours)	≤ 0.2 dB
Temperature Cycling (-40°C to 85°C, 5 cycles)	≤ 0.2 dB
Humidity (-25°C ~ 65°C, 93%)	≤ 0.2 dB

Applications

Signal transmission and data transmission
Telecommunications networks and local area networks (LAN)
Metropolitan area networks and fiber optic communication systems
Fiber optic test equipment and instrumentation
Fiber optic CATV (cable television) and fiber optic sensors
Fiber optic broadband and FTTH (Fiber to the Home)
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Product Specifications

Connector	LC to LC
Fiber Mode	9/125μm
Polish	UPC to UPC
Fiber Type	Simplex
Insertion Loss	≤0.3dB
Return Loss	≥50dB
Operating Temperature	-40°C to 70°C
Storage Temperature	-45°C to 85°C
Jacket OD	2.0mm
Jacket Color	Yellow
Wavelength	1310/1550nm
Jacket Material	PVC
Interchangeability	≤0.2dB
Vibration	≤0.2dB
Polarity	A(Tx) to B(Rx)
Fiber Grade	G652D

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

3M LC UPC Single Mode Fiber Optic Jumper Cable with 2.0mm Diameter and Simplex Fiber for LAN

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

3M LC UPC Single Mode Fiber Optic Jumper Cable with 2.0mm Diameter and Simplex Fiber for LAN

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC UPC Patch Cord

Diameter:

2.0mm

Fiber Type:

Simplex

Connector:

LC-LC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

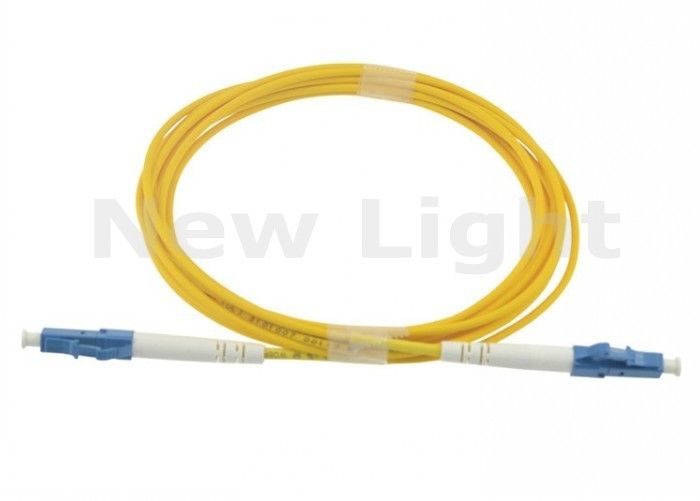

3M LC UPC Single Mode Fiber Optic Jumper Cables

Simplex 3.0mm diameter fiber optic patch cords designed for LAN applications and FTTH (Fiber to the Home) deployments.

Customization Options

Connector Types

FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

Ferrule End-face

PC, UPC, APC

Core Types

Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)

Cable Configuration

Simplex, Duplex, 6-core, 12-core, 16-core, 24-core, 36-core, 48-core

Cable Diameter

φ3.0mm, φ2.0mm, φ0.9mm

Cable Length

1, 2, 3 meters or custom lengths

Cable Jacket

PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Mechanical Performance

Interchangeability	≤ 0.1 dB
Vibration (5 to 50Hz, 1.5mm)	≤ 0.1 dB
Tensile Strength (0 to 15Kg pull)	≤ 0.1 dB
High Temperature (+85°C for 50 hours)	≤ 0.2 dB
Low Temperature (-40°C for 50 hours)	≤ 0.2 dB
Temperature Cycling (-40°C to 85°C, 5 cycles)	≤ 0.2 dB
Humidity (-25°C ~ 65°C, 93%)	≤ 0.2 dB

Applications

Signal transmission and data transmission
Telecommunications networks and local area networks (LAN)
Metropolitan area networks and fiber optic communication systems
Fiber optic test equipment and instrumentation
Fiber optic CATV (cable television) and fiber optic sensors
Fiber optic broadband and FTTH (Fiber to the Home)
Fiber optic patch panels, rack and wall mount fiber optic wiring units

Product Specifications

Connector	LC to LC
Fiber Mode	9/125μm
Polish	UPC to UPC
Fiber Type	Simplex
Insertion Loss	≤0.3dB
Return Loss	≥50dB
Operating Temperature	-40°C to 70°C
Storage Temperature	-45°C to 85°C
Jacket OD	2.0mm
Jacket Color	Yellow
Wavelength	1310/1550nm
Jacket Material	PVC
Interchangeability	≤0.2dB
Vibration	≤0.2dB
Polarity	A(Tx) to B(Rx)
Fiber Grade	G652D

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
