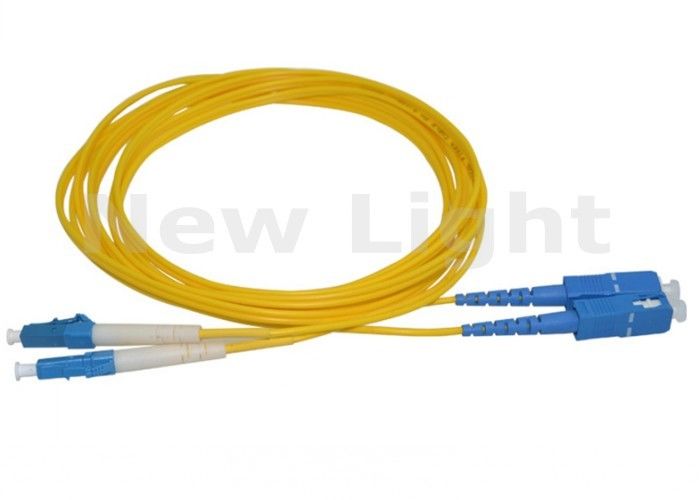

SC-LC UPC 3M Single mode duplex fiber optic patch cord cable SC-LC 2.0mm FTTH fiber optic jumper cable
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Specifications
| Specification |
Unit |
FC, SC, LC/Armored Cables |
ST, MU |
MT-RJ, MPO |
E2000 |
| Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion loss |
dB |
≤2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return loss |
dB |
≥550 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
1310,1510 |
| Interchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
| Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
| Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
