Products Details

Home > Products >

Fiber Optic Cables

Single Mode Duplex Fiber Optic Patch Cord with 2.0mm Diameter and 3 Meter Length for CATV and FTTH Applications

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

Single Mode Duplex Fiber Optic Patch Cord with 2.0mm Diameter and 3 Meter Length for CATV and FTTH Applications

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

SC LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

SC-LC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

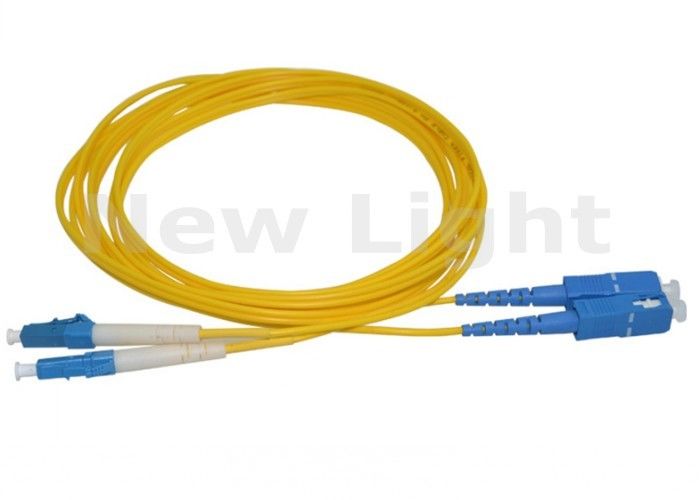

CATV 3M Fiber Optic Jumper Cables

Single Mode Duplex 2.0mm SC LC Fiber Patch Cord

Product Overview

SC-LC UPC 3M Single mode duplex fiber optic patch cord cable with 2.0mm diameter, designed for FTTH fiber optic applications.

Key Characteristics

Connector types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule end-face: PC, UPC, APC
Core type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Product Features

Low insertion loss and back reflection loss
Excellent exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
		Single-mode	Single-mode	Single-mode	Single-mode
		PC \| UPC \| APC	PC \| UPC	PC \| UPC	PC \| APC
Insertion loss	dB	≤0.2 \| ≤0.3 \| ≤0.2	≤0.3 \| ≤0.2	≤0.2 \| ≤0.3	≤0.2 \| ≤0.3
Return loss	dB	≥50 \| ≥60 \| ≥30	≥45 \| ≥50	≥30 \| ≥45	≥35 \| ≥75
Wavelength	nm	1310, 1510
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	℃	-40~75
Storage temperature	℃	-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9

Applications

CATV systems
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling systems and ODF
FTTX applications
