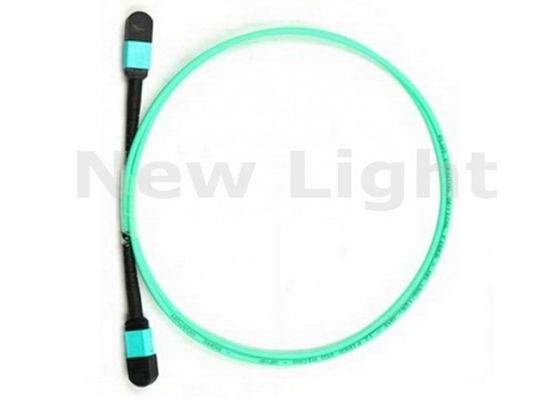

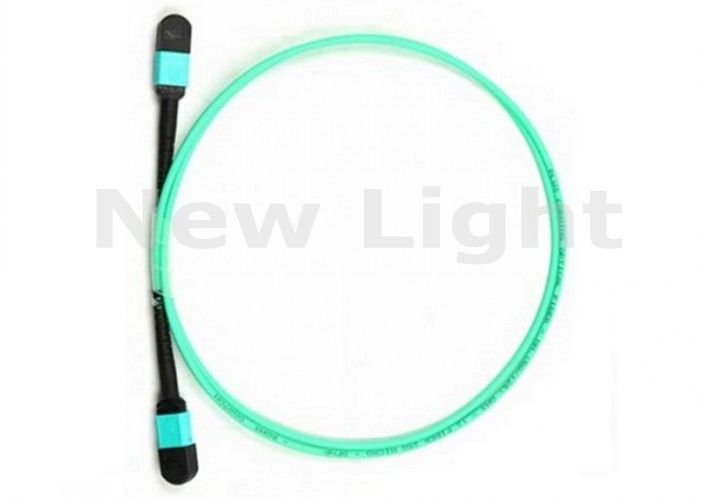

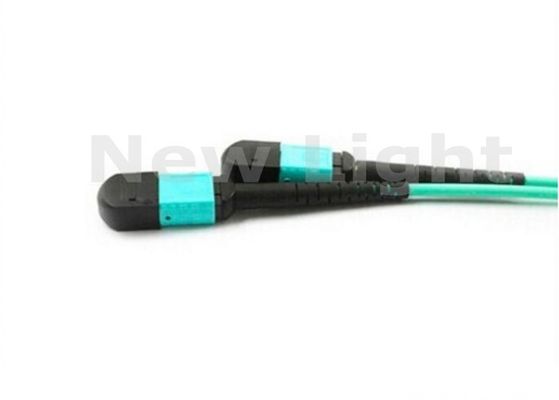

1M 12 Core MTP to MTP OM3 Multimode Fiber Optic Patch Cord Cable

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green

Name:

MTP Trunk Cable

Connector:

MTP-MTP

Length:

0.5meter

Mode:

OM3 Multimode Fibre Optic Cable

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

1M 12 Core MTP to MTP OM3 Multimode Fiber Optic Patch Cord

MTP-MTP 12 Cores 1M OM3 Multimode Fiber Optic Patch Cord Cable

Optimized Performance

Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing provide low insertion loss and high return loss, minimizing variability for improved channel link loss performance.

Standards Compliance

Jacketed cable compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

MPO connector complies with IEC-61754-7 & EIA/TIA-604-5

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3)
Jacket Materials	LSZH /OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC) \| ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107	≥45dB (PC/UPC) ≥55dB (APC) \| ≥35dB (PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors.

Key Features

Connector End Face: MPO end face geometry requirements: EN50377-15-1

Polishing Quality: Polished end-face quality: IEC61300-3-35

Designed for data center solutions supporting 10 Gigabit Ethernet, Fiber Channel or Infiniband

Compliant with data center standards EN50173-5 and ISO/IEC 24764

MPO Configuration Details

MPO patch cables are used for interconnections between MPO cassettes or connections to active equipment with MPO/MTP interface. When connecting through an MPO coupler to another MPO patch cable, one connector must be male (equipped with pins).

Available Configurations:

3 different wire map configurations: Straight, Total Flipped, or Pair Flipped

Available in multi-mode and single-mode fiber cable

Performance Specifications

Type/Performance	Singlemode (APC polish)	Multimode (PC / Flat Polish)
	Standard \| Elite Low Loss	Standard \| Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB \| ≤ 0.35dB	≤ 0.60dB \| ≤ 0.35dB
Return Loss	≥ 50dB \| N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	850nm

Contact Us: WHATSAPP +8613534063703
