12 Core OM3 Multimode MPO Fiber Optic Cable with 3M Length and LSZH Jacket for Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core OM3 Multimode MPO Fiber Optic Cable with 3M Length and LSZH Jacket for Data Centers

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green

Name:

MTP Trunk Cable

Connector:

MTP-MTP

Length:

0.5meter

Mode:

Multimode

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

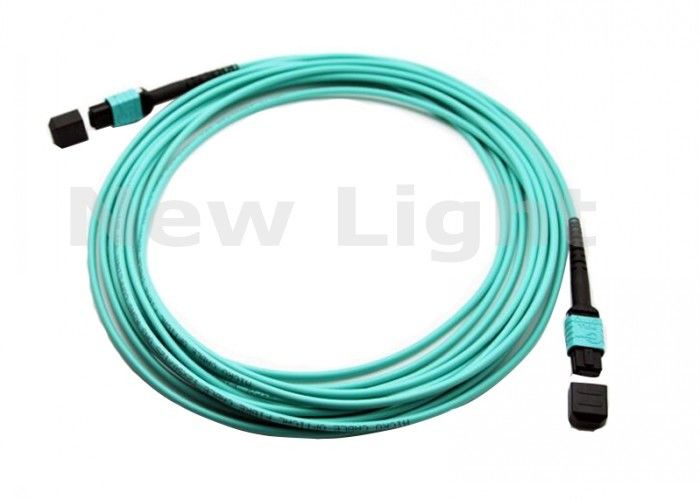

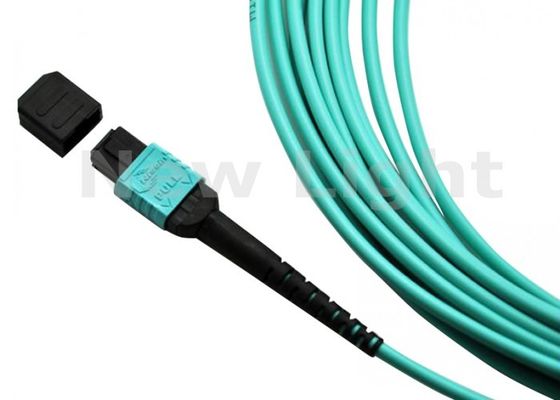

MPO 12 Core OM3 Multimode Fiber Optic Cable

3M pre-terminated fiber optic patch cord cable designed for high-performance data center applications.

Standards Compliance

Jacketed cable complies with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating. Compliant with Directive 2002/95/EC (RoHS) and REACH SvHC. MPO connector meets IEC-61754-7 & EIA/TIA-604-5 standards.

Key Features

MPO end face geometry: EN50377-15-1 compliant
Polished end-face quality: IEC61300-3-35 standard
Designed for data center solutions supporting 10 Gigabit Ethernet, Fiber Channel, and Infiniband
Compliant with data center standards EN50173-5 and ISO/IEC 24764
Optimized performance with low loss MPO/MTP OECE proprietary MT polishing
Provides low insertion loss and high return loss
Minimizes variability for improved channel link loss performance

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC) \| ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107	≥45dB (PC/UPC) ≥55dB (APC) \| ≥35dB (PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors.

MPO Configuration Details

MPO patch cables are used for interconnections between MPO cassettes or connections to active equipment with MPO/MTP interface. When connecting through an MPO coupler to another MPO patch cable, one connector must be male (equipped with pins).

Available in 3 wire map configurations: Straight, Total Flipped, or Pair Flipped. Available in multi-mode and single-mode fiber cable.

Contact: WHATSAPP +8613534063703

Performance Specifications

Type/Performance	Singlemode (APC polish)	Multimode (PC / Flat Polish)
	Standard \| Elite Low Loss	Standard \| Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB \| ≤ 0.35dB	≤ 0.60dB \| ≤ 0.35dB
Return Loss	≥ 50dB \| N/A
Operating Temperature	-40°C to 80°C	-40°C to 80°C
Test Wavelength	1310nm	850nm
