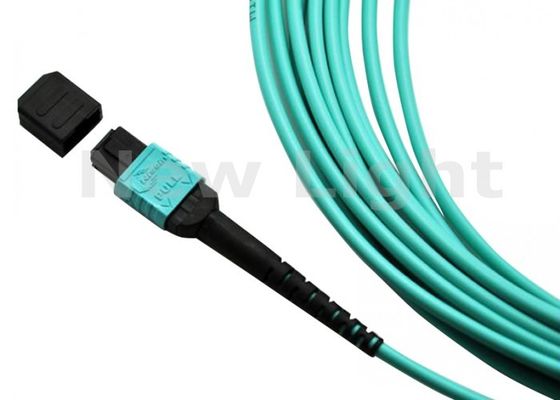

MPO - MPO 12 Core OM3 Multimode Fibre Optic Cable , 3M Pre Terminated Fiber Optic Cable

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green

Name:

MTP Trunk Cable

Connector:

MTP-MTP

Length:

0.5meter

Mode:

Multimode

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

MPO-MPO 12Cores 3M OM3 multimode Fiber optic patch cord cable MPO-MPO Indoor pre - terminated Fiber optic cable

Standards Compliance:

Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

MPO connector complies with IEC-61754-7 &amp; EIA/TIA-604-5.

Feature:

Connector End face: MPO end face geometry requirements: EN50377-15-1

Polishing Quality:: Polished end-face quality: IEC61300-3-35

Our MPO patch cables are designed for data center solutions supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
ISO/IEC 24764.

Description:

Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.

Technical Specifications:

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

MPO Detail:

MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

MPO patch cables are available in multi-mode and single-mode fiber cable.

Applications

Performance of Assemblies MTP / MPO Termination:

Type/Performance	Singlemode(APC polish)		Multimode(PC / Flat Polish)
	Standard	Elite Low Loss	Standard	Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB		N/A
Operating Temperature	-40°C to 80°C		40°C to 80°C
Test Wavelength	1310nm		850nm

MPO - MPO 12 Core OM3 Multimode Fibre Optic Cable , 3M Pre Terminated Fiber Optic Cable 0
