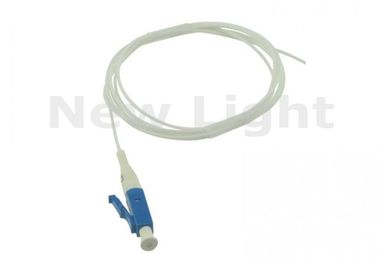

LC UPC Fiber Optic Jumper Cables 1.5M Length Single Mode Fiber Optic Pigtail

LC UPC Fiber Optic Jumper Cables 1.5M Length Single Mode Fiber Optic Pigtail

    • LC UPC Fiber Optic Jumper Cables 1.5M Length Single Mode Fiber Optic Pigtail
  • LC UPC Fiber Optic Jumper Cables 1.5M Length Single Mode Fiber Optic Pigtail

    Product Details:

    Place of Origin: China
    Brand Name: NewLight
    Certification: IS09001-2008.ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negoatiate
    Packaging Details: 1 pcs per pack
    Delivery Time: 3 to 5 working day
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Name: LC Pigtail Single Mode Diameter: 0.9mm
    Model: Single Connector: LC
    Color: White Length: 1.5 Meter
    High Light:

    fiber optic pigtail

    ,

    single mode fiber jumpers

    LC UPC Single mode fiber optic Pigtail LC 1.5M Singlemode Optical fiber pigtail LC 0.9MM fiber optic cable







    Description:



    Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



    Performance:



    Item SM(Single Mode) MM(Multimode)
    Fiber Cable Type G652D/G657A1/G6572/G655/G657B OM1 OM2/OM3/OM4
    Fiber Diameter (um) 9/125 62.5/125 50/125
    Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
    Endface Type PC UPC APC UPC UPC
    Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
    Return Loss (dB) >45 >50 >60 /
    Insert-pull Test (dB) <0.2 <0.3 <0.15
    Interchangeability (dB) <0.1 <0.15 <0.1
    Anti-tensile Force (N) >70
    Temperature Range (℃)

    -40~+80







    Specification:





    Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
    Return Loss (dB) ≥45 ≥50 ≥60 ≥35
    Insertion Loss (dB) ≤0.2 (max≤0.3)
    Repeatability (dB) ≤0.1
    Durability(1/Matings) ≥500
    Operation Temperature (°C) -25~+70
    Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
    Fiber 9/125um, 50/125um,62.5/125um,ect
    diameter 0.9mm 2.0mm, 3.0mm etc
    Cable material PVC, LSZH
    Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc



    Features:

    1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
    2. Low Insertion Loss & Back Reflection
    3. Environmentally Stable
    4. 2,4,6,8, 12 and 24 Channels Avaliable
    5. Save Duct Space,Cost and Installation time
    6. Easy Push/Pull Operation
    7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional







    1. Simplex and duplex connector available

    2. High precision of mechanical dimensions.

    3. Good exchange ability and good durability;

    4. Low Insertion Loss, High temperature Stability and Good exchangeability.

    5 Fan-out Available, Pigtail Available, Various

    Boot(cable) Size Available





    Application:



    * Optical fiber communication system

    * Optical fiber test equipment

    * Optical fiber access network

    * Optical fiber sensor

    * Optical fiber CATV system

    * Optical fiber data transmission

    * Local area network







    LC UPC Fiber Optic Jumper Cables 1.5M Length Single Mode Fiber Optic Pigtail 0
