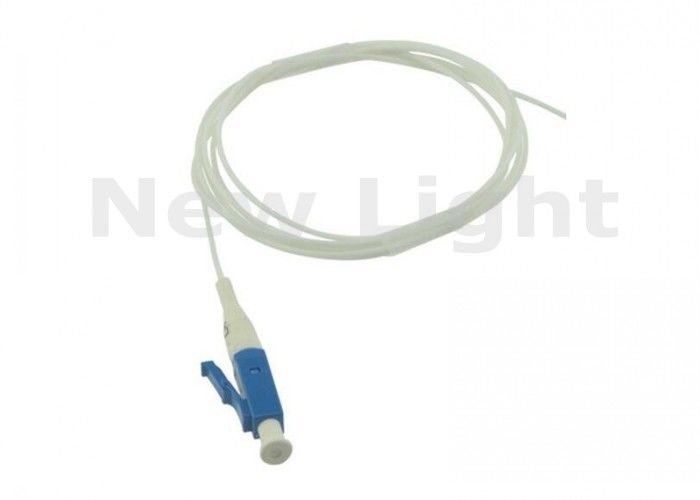

LC UPC Single Mode Fiber Optic Pigtail with 1.5M Length and 0.9mm Diameter for Low Insertion Loss

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC Pigtail Single Mode

Diameter:

0.9mm

Model:

Single

Connector:

Color:

White

Length:

1.5 Meter

Supply Ability:

1000000

Highlight:

fiber optic pigtail

single mode fiber jumpers

Product Description

LC UPC Fiber Optic Jumper Cables - 1.5M Single Mode Fiber Optic Pigtail

LC UPC Single Mode Fiber Optic Pigtail with 1.5M length and 0.9MM fiber optic cable diameter. These pigtails are essential components for optical networks, featuring various connector types installed on fiber optic cable ends to meet diverse deployment requirements.

Performance Specifications

Item	SM (Single Mode)	MM (Multimode)
Fiber Cable Type	G652D/G657A1/G6572/G655/G657B	OM1 \| OM2/OM3/OM4
Fiber Diameter (um)	9/125	62.5/125 \| 50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC \| UPC \| APC	UPC
Typical Insertion Loss (dB)	<0.2	<0.1
Return Loss (dB)	>45 \| >50 \| >60	/

Technical Specifications

Parameter	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability (Matings)	≥500
Operation Temperature (°C)	-25 to +70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9

Key Features

Compliant with Telcordia, GR-326-CORE, TIA/EIA and IEC standards
Low Insertion Loss & Back Reflection
Environmentally stable performance
Available in 2, 4, 6, 8, 12 and 24 channels
Saves duct space, cost and installation time
Easy push/pull operation
Breakout cable, bundle distribution cable, ribbon cable, and outdoor waterproof cable options available
Simplex and duplex connector configurations
High precision mechanical dimensions
Excellent exchangeability and durability
High temperature stability
Fan-out available with various boot sizes

Applications

Optical fiber communication systems
Optical fiber test equipment
Optical fiber access networks
Optical fiber sensors
Optical fiber CATV systems
Optical fiber data transmission
Local area networks
