Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
		Single-mode	Multi-mode	Single-mode	Multi-mode	Single-mode	Multi-mode	Single-mode
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss	dB	≤2	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥550	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Wavelength	nm	1310,1510			1310,1510	1310,1510			1310,1510			1310,1510
Interchangeability	dB	≤0.2			≤0.2	≤0.2			≤0.2			≤0.2
Vibration	dB	≤0.2			≤0.2	≤0.2			≤0.2			≤0.2
Operating temperature	℃	-40~75			-40~75	-40~75			-40~75			-40~75
Storage temperature	℃	-45~85			-45~85	-45~85			-45~85			-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9

Product Characteristics

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores...
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Key Features

Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified

Applications

CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

FTTH SC APC Patch Cord 2.0mm Diameter Single Mode Duplex Fiber Optic Cable 3 Meter Length

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

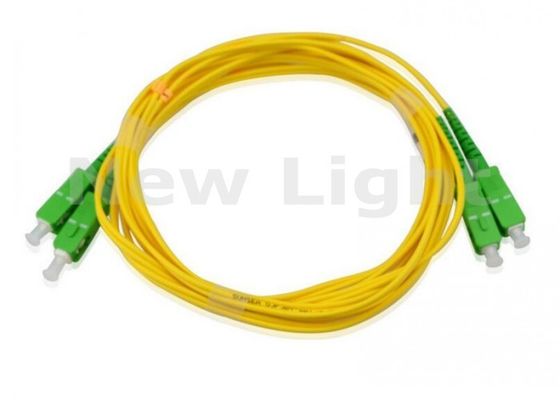

FTTH SC APC Patch Cord 2.0mm Diameter Single Mode Duplex Fiber Optic Cable 3 Meter Length

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

SC SC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

SC-SC

Color:

Yellow

Length:

3 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

FTTH SC APC Patch Cord

2.0mm / 3.0mm Single Mode Duplex Fiber Optic Cable

SC APC 3M Single mode duplex fiber optic patchcord cable SC 2.0mm or 3.0mm FTTH fiber optic jumper cable

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
		Single-mode	Multi-mode	Single-mode	Multi-mode	Single-mode	Multi-mode	Single-mode
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss	dB	≤2	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥550	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Wavelength	nm	1310,1510			1310,1510	1310,1510			1310,1510			1310,1510
Interchangeability	dB	≤0.2			≤0.2	≤0.2			≤0.2			≤0.2
Vibration	dB	≤0.2			≤0.2	≤0.2			≤0.2			≤0.2
Operating temperature	℃	-40~75			-40~75	-40~75			-40~75			-40~75
Storage temperature	℃	-45~85			-45~85	-45~85			-45~85			-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9

Product Characteristics

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores...
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Key Features

Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified

Applications

CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
