Parameter	PC	UPC	APC	Multi-mode
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	>40dB	>50dB	>60dB	/
Exchange	≤0.2dB
Repeatability	≤0.2dB
Service life	>1000 times
Tensile strength	>10kg
Temperature range	-40°C to +85°C

Ordering Information

Fiber Mode	Connector Type	Cable Type	Length of Fiber/Cable
S=Single mode M=Multimode P=PM fiber X=others	SC=SC/PC FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others	1=0.9mm 2=2mm 3=3mm x=Others	01=1.0m 02=2.0m 03=3.0m 04=4.0m xx=others

Product Characteristics

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores...
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Key Features

Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
CE, ROHS, FCC certified

Applications

CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications

Tags:

fiber optic pigtail

ftth fiber optic cable

single mode fiber jumpers

Products Details

Home > Products >

Fiber Optic Cables

LC OM3 12 Core Multimode Fiber Optic Pigtail with 1.5M Length and Green Color

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

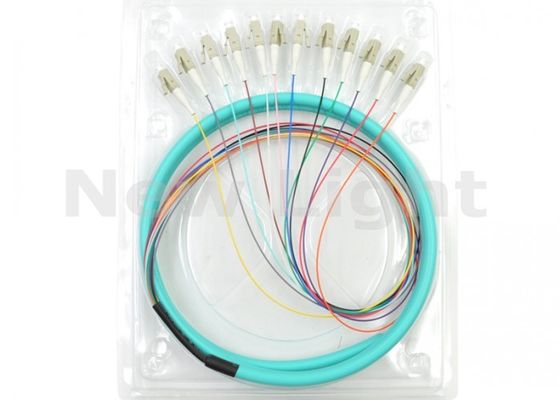

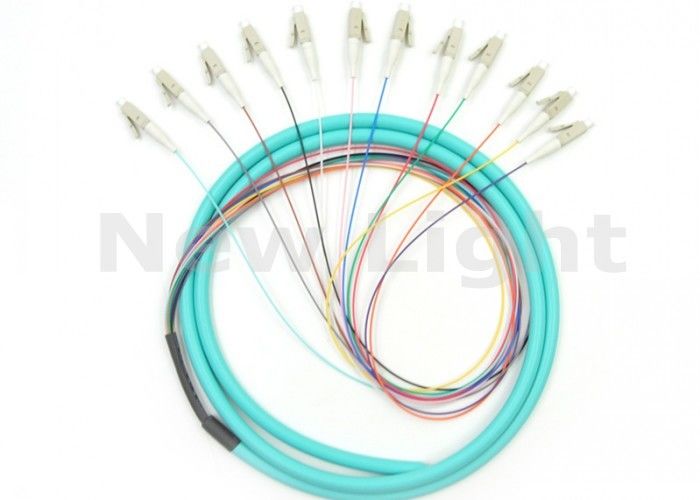

LC OM3 12 Core Multimode Fiber Optic Pigtail with 1.5M Length and Green Color

Brand Name:	NewLight
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

LC 12 Cores Pigtail

Diameter:

2.0mm

Model:

Multimode

Connector:

Color:

Green

Length:

1.5 Meter

Minimum Order Quantity:

1 roll

Price:

0.1~100

Packaging Details:

export packing

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:
