Green 5dB Single Mode FC APC Fiber Optic Attenuator Female to Male for Precise Attenuation

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	10pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green

Connector:

FC Fiber Optic Attenuator

Polish:

APC

Mode:

Single Mode

Attenuator:

5dB

Material:

Metal,plastic

Supply Ability:

10000/month

Highlight:

single mode fiber attenuator

fixed optical attenuator

Product Description

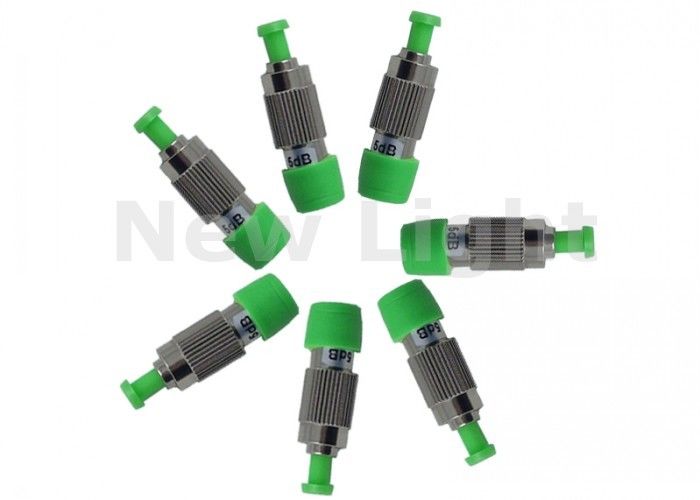

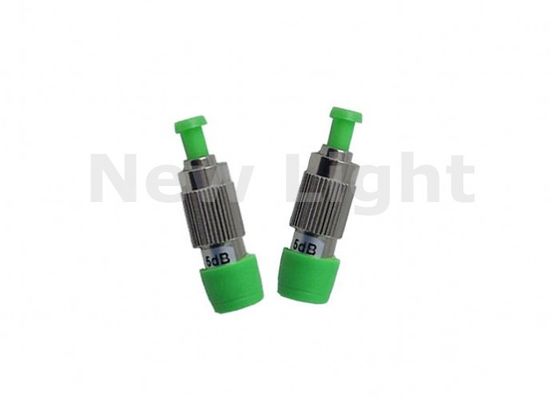

Green Fiber Optic Attenuator Single Mode FC APC Female To Male 5 dB

FC APC female to male 5dB fiber optic Attenuator - A high-performance solution for precise optical power management in fiber optic systems.

Key Features

High power 1W continuous operation tested over 1000 hours
Precise attenuation with excellent reliability
Superior return loss: UPC >50 dB, APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range: 1 to 13 dB in 1 dB increments, plus 15 dB and 20 dB options

Applications

Fiber optic communication systems
CATV and telecommunication networks
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for optical apparatus

Product Overview

Our extensive line of dual wavelength (1310/1550nm) singlemode fiber optic attenuators provides versatile in-line solutions for both laboratory and commercial applications. Constructed with premium materials and factory tested, this series offers comprehensive connector styles and polish types for optimal performance.

Technical Specifications

Parameter	Specification
Attenuation Value	1dB ~ 30dB
Operating Wavelength	1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss	UPC >55dB, APC >65dB
Attenuation Accuracy	1 ~ 7 dB: ±0.5dB 8 ~ 12 dB: ±0.7dB 13 ~ 17 dB: ±1.0dB 18 ~ 25 dB: ±1.3dB
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Operating Temperature Range	-40°C to 75°C
Storage Temperature Range	-40°C to 85°C
Humidity	95% RH

Contact Us: WHATSAPP 008613534063703

Parameter	Specification
Attenuation Value	0dB to 30dB
Operating Wavelength	SM: 1260nm~1620nm, MM: 850/1300nm (Customer ordered)
Return Loss	UPC≥50dB, APC≥60dB
Polarization Loss	≤0.2dB
Attenuation Tolerance	0dB~9dB: 0.5dB, 10~30dB: 10% of attenuation value
Maximum Power Capability	250mW
Operating Temperature	-40°C~+85°C
Storage Temperature	-40°C~+85°C

Frequently Asked Questions

1. Are you the real factory?

Yes, we are the manufacturer with 16 years of experience.

2. What is your fiber brand?

Fiber brands including YOFC and FiberHome.

3. What are your main products?

Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords (SC, LC, FC, ST, MTP, MPO).

4. Product quality guarantee period?

20 years guarantee for fiber optic cable.

5. Do you have certificate for raw material?

We maintain long-term relationships with qualified ISO9001 ROHS certified raw material suppliers.

6. What is your delivery time?

Within 48 hours for standard fiber optic products.

7. What is your minimum order quantity (MOQ)?

MOQ for Fiber Optic Cable Patch Panel: 10 sets. No MOQ required for fiber optic patch cords as we maintain stock for standard types.

8. Do you have distributors in other countries?

We currently sell directly to customers and offer factory pricing.

9. What payment methods do you accept?

For large orders: T/T. For small orders: T/T and Paypal are acceptable.

10. What are your shipping and delivery options?

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air, or by courier services - all options available.
