Characteristic	SM, MM
Connector type	FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	0.9, 2.0, 3.0
Polishing grade	SM PC \| MM PC \| UPC \| APC
Insertion loss	≤0.3dB \| ≤0.4dB \| ≤0.2dB \| ≤0.3dB
Return loss	≥40dB \| ≥50dB \| ≥65dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40°C to +85°C

Product Features

Low insertion loss and back reflection loss
High precision alignment
Nickel plated brass body
Plastic body
Choice of housing shape and sleeve material
Compact design

Applications

CATV
Telecommunication networks
Test equipment
Metro networks
Local Area Networks (LANs)
Data processing networks

Tags:

fiber optic fast connector

fiber optic cable connectors

multimode fiber connectors

Products Details

Home > Products >

Fiber Optic Connectors

Plastic Body Single Mode ST to LC Fiber Optic Connector with Low Insertion Loss for CATV

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

Plastic Body Single Mode ST to LC Fiber Optic Connector with Low Insertion Loss for CATV

Brand Name:	New Light
MOQ:	100
Price:	0.1~100
Packaging Details:	10pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

Color:

Blue ,Red

Material:

Plastic,Metal

Connector:

ST-LC

Model:

Singlemode

Polish:

UPC

Name:

ST-LC Adapter

Minimum Order Quantity:

100

Price:

0.1~100

Packaging Details:

10pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

10000 pcs/month

Highlight:

fiber optic cable connectors

fiber optic fast connector

Product Description

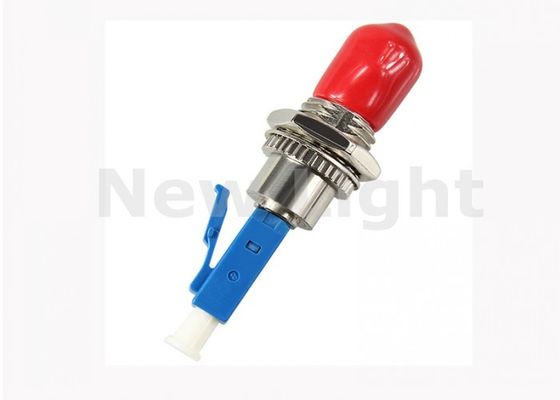

Plastic Body Fiber Optic Connectors Single Mode ST TO LC Adapter For CATV

Test equipment use ST to LC Optical fiber adapter Fiber Optic Connector ST-LC Male-Female

Available Configurations

SC to ST
SC to FC
FC to ST
LC to FC
LC to SC
DIN to FC
DIN to SC

Key Specifications

Insertion Loss: <0.20dB
Durability: <0.20 dB typical change, 1000 matings
Operating Temperature: -40°C to +80°C

Characteristic	SM, MM
Connector type	FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	0.9, 2.0, 3.0
Polishing grade	SM PC \| MM PC \| UPC \| APC
Insertion loss	≤0.3dB \| ≤0.4dB \| ≤0.2dB \| ≤0.3dB
Return loss	≥40dB \| ≥50dB \| ≥65dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40°C to +85°C

Product Features

Low insertion loss and back reflection loss
High precision alignment
Nickel plated brass body
Plastic body
Choice of housing shape and sleeve material
Compact design

Applications

CATV
Telecommunication networks
Test equipment
Metro networks
Local Area Networks (LANs)
Data processing networks
