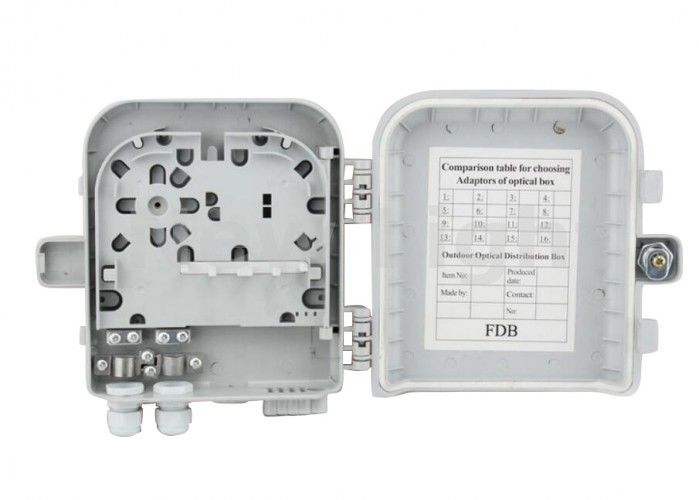

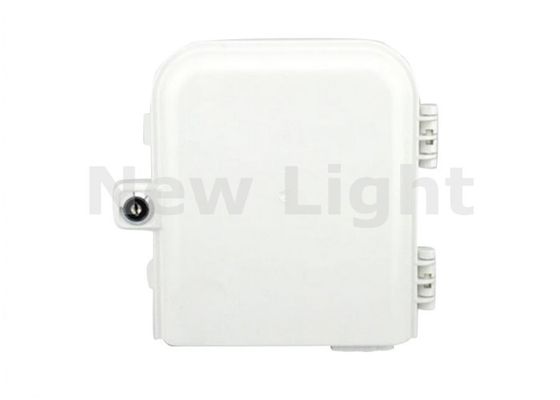

8 Core FTTH Termination Box with ABS Material for Easy Installation and Wall Mounting

Brand Name:	New Light
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS Material

Core:

Name:

Wall Mount Fiber Termination Box

OEM:

Available

Application:

Fiber Optic Assembly

Supply Ability:

1000 pcs per month

Highlight:

fiber optic termination box

outdoor fiber termination box

Product Description

SC UPC Adapter 8 Core FTTH Termination Box

Professional 8-port fiber optic termination box designed for easy installation and optical fiber splicing applications in FTTH networks.

Applications

Optical fiber splicing and branching
Flip design with stackable disk for capacity expansion
6 ports per unit configuration
Fiber pigtail management system
Easy installation and removal
Compatible with optical distribution boxes

Specifications

Material	ABS/PC
Capacity	12 core/piece, 24 core/piece
Cover	Transparent cover or solid cover options
Color	Grey, Black, White

Technical Parameters

Working Temperature	-40°C to +60°C
Relative Humidity	93% (at +40°C)
Atmospheric Pressure	62kPa to 101kPa (0-5000 meters elevation)
Insertion Loss	Less than 0.35dB
Reversal Loss	Not less than 50dB
Plug Endurance	Greater than 1000 cycles
Insulation Resistance	1000MΩ/50V (DC)
Pressure Resistance	Greater than 3000V (DC) /1min no breakdown, no flashover

Product Description

FTTH optical fiber distribution box serves as client distribution equipment for optical networks, providing optical transmission terminal fusion splicing, optical output wiring, and other essential functions. Effectively terminates, protects, and manages fiber optic cables - a necessary component for optical network transmission systems.

Key Features

Flame-retardant engineering plastic construction using ABS and polycarbonate materials with high-temperature molding for superior impact resistance and IP55 protection rating
Versatile multi-purpose wiring device suitable as both termination box and splitter box
Unique anti-theft lock box design with flexible opening and closing mechanism
Special hinge structure allows easy removal and installation of box cover during cable splicing
Double plate structure with high-density port configuration

Installation & Usage

Open box body and remove lid
Use provided expansion nails for wall mounting
Drill wall holes at specified positions
Tighten 3 screws from bottom box front

Contact via WhatsApp: 008613534063703
