Fiber Optic Patch Panel

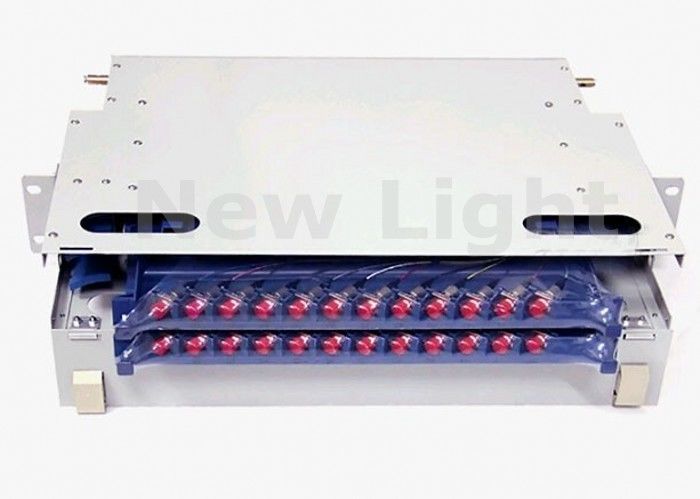

19 Inch 24 Port ODF Optical Distribution Frame Fiber Optic Patch Panel for FTTX/FTTH Applications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

19 Inch 24 Port ODF Optical Distribution Frame Fiber Optic Patch Panel for FTTX/FTTH Applications

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

White

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

Outdoor Fiber Optic Patch Panel

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

odf optical fiber distribution frame

fiber optic distribution box

Product Description

White ODF Optical Distribution Frame, 19 Inch ODF Fiber Optic Patch Panel 24 Port

For cable terminal use 19 inch 24 core 2U ODF optical fiber distribution frame 24 port core

Product Overview

This ODF with pigtails and adapters includes one distribution frame, adapters, and pigtails. Components are shipped separately for on-site assembly by the installer. Available in configurations from 12 to 192 fibers, these withdrawable ODFs are designed for mounting in 19" racks and feature splice holders and fiber guiding systems. Custom combinations are available upon request.

Technical Specifications

Type: Cable installation, wall mount
Size: 460x300x90cm
Capacity: 24 SC, 24 LC
Connector Options: SC, SC/APC, LC, LC/APC, ST, FC

Key Features

Standard size with lightweight, rational structure design
Interchangeable splice tray interior
Compatible with 19'' and 23'' standard distribution frames
Suitable for both ribbon and single fiber applications
Multiple panel plates to accommodate different adapter interfaces
Front marking for easy identification and operation
Available in 24C, 36C, 48C, 72C, 96C configurations with optional fiber optic pigtails and adapters
Simplified management and operation

Applications

Telecommunications subscriber loop systems
Fiber to the home (FTTH) deployments
LAN/WAN network infrastructure
CATV systems

Electrical Performance Specifications

Parameter	Specification
Environment Temperature	-25°C to 55°C
Atmosphere Pressure	70-106 Kpa
Insulating Resistance	>2×10⁴ MΩ/500VDC
Relative Humidity	<85% (when temperature is below 30°C)
Voltage Strength	15kV/DC/1min, non-puncture, no arc-over

WHATSAPP 008613534063703
